Solid Carbide Long Neck Micro End Mill 3 Flute for Aluminum (1mm-3mm) - Deep Reach CNC Tool

High-precision 3 Flute Long Neck Micro End Mills for Aluminum. Solid Tungsten Carbide, Shank 4mm, Dia 1mm-3mm with various effective lengths for deep rib processing. Excellent chip evacuation and surface finish. Factory direct stock.

Contact Us

Product Function

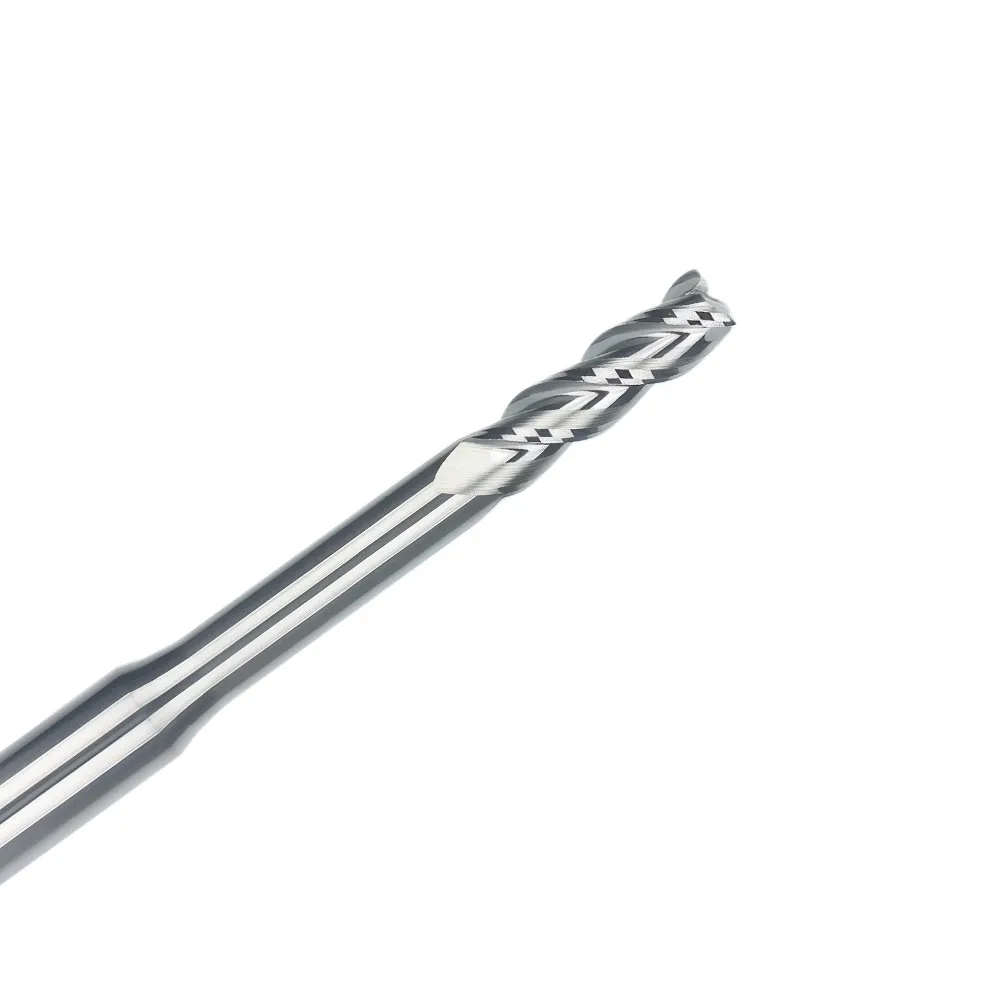

Designed specifically for precision machining of aluminum and non-ferrous metals, this Tungsten Carbide Micro End Mill features a Long Neck (Deep Reach) design. It is the ultimate solution for machining deep ribs, slots, and intricate pockets where standard end mills cannot reach without interference. The 3-flute geometry ensures a perfect balance between chip evacuation and surface finish, preventing chip packing in deep cavities.

Product Features

  • Specialized for Aluminum: The 3-flute design with high helix angle and polished flutes minimizes built-up edge (BUE) and ensures smooth chip removal, critical for aluminum alloys (6061, 7075, etc.).
  • Long Neck / Deep Reach: The reduced neck diameter allows for deep machining while maintaining high rigidity compared to standard long-flute tools, reducing chatter and deflection.
  • Micro Precision: Available in micro diameters (1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm) with a standard 4mm shank for high stability.
  • Premium Material: Made from Ultra-Fine Micro Grain Tungsten Carbide for exceptional wear resistance and tool life.
  • High Concentricity: High-precision grinding ensures tight tolerances, essential for micro-machining applications.

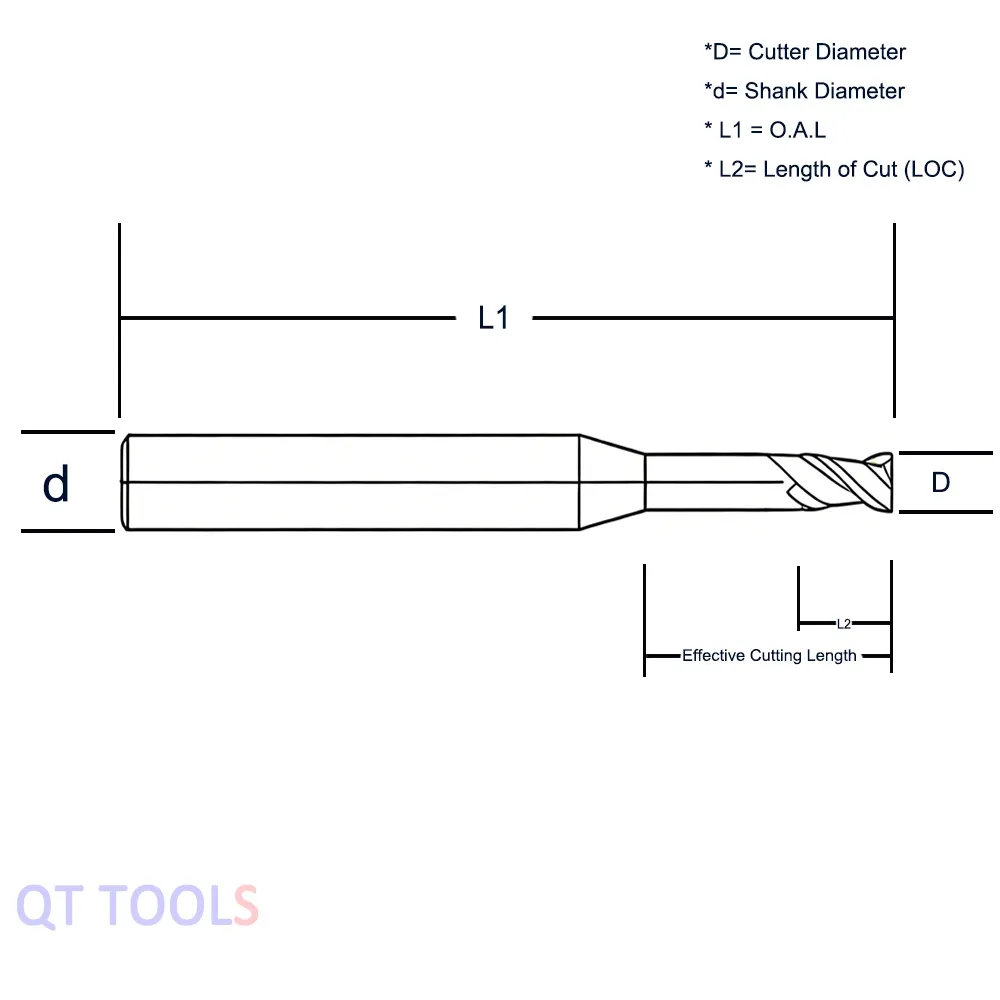

Specifications

Shank Diameter (d): 4mm Material: Solid Tungsten Carbide Flutes: 3 Flutes Application: Aluminum, Copper, Brass, Non-ferrous metals
Cutter Diameter (D)
Effective Cutting Length (Neck Length)
Length of Cut (L2)
Over All Length (L1)
Shank Diameter (d)
1.0mm
4, 5, 6, 8, 10, 12, 14, 15, 16, 18, 20
3.0mm
50mm
4mm
1.0mm
23, 25, 30
3.0mm
60mm
4mm
1.5mm
6, 8, 10, 12, 14, 15, 16, 18, 20
4.5mm
50mm
4mm
1.5mm
23, 25, 30
4.5mm
60mm
4mm
2.0mm
8, 10, 12, 14, 15, 16, 18, 20
6.0mm
50mm
4mm
2.0mm
23, 25, 30
6.0mm
60mm
4mm
2.5mm
8, 10, 12, 14, 15, 16, 18, 20
7.5mm
50mm
4mm
2.5mm
23, 25, 30
7.5mm
60mm
4mm
3.0mm
12, 14, 15, 16, 18, 20
9.0mm
50mm
4mm
3.0mm
23, 25, 30
9.0mm
60mm
4mm

RPM/Feed Reference (Recommended Parameters)

Note: These parameters are for reference only. Adjust based on your machine rigidity, cooling system, and specific aluminum grade.
Diameter (mm)
RPM (min-1)
Feed Rate (mm/min)
Feed per Tooth (fz)
Depth of Cut (Ap)
1.0
20,000 - 35,000
600 - 1200
0.01 - 0.02
0.05 - 0.1D
1.5
18,000 - 30,000
800 - 1500
0.015 - 0.025
0.05 - 0.1D
2.0
15,000 - 25,000
1000 - 2000
0.02 - 0.03
0.1 - 0.2D
2.5
12,000 - 22,000
1200 - 2400
0.025 - 0.04
0.1 - 0.2D
3.0
10,000 - 20,000
1500 - 3000
0.03 - 0.05
0.1 - 0.3D
  • Coolant: Flood coolant or Oil mist is highly recommended to prevent aluminum adhesion.
  • Strategy: For deep ribs, use smaller step-downs (Ap) to reduce tool deflection.

Promotion Policy

We value our partnership and offer the following incentives for new and loyal clients:
  1. Free Sample: Free sample can be provided, if clients agree to pay for shipping cost.
  1. First Order Coupon: New clients can enjoy USD50 discount coupon for first order, if the total order amount is more than USD500.
  1. Big Order Discount: Clients can enjoy 2%~5% discount, if the total order amount is more than USD5000.

Client Benefits

  • Factory Direct Pricing: Eliminate middlemen and get the best value for high-performance tools.
  • Huge Stock: We maintain a large inventory of various effective lengths (neck lengths) for immediate shipment.
  • Quality Assurance: 100% inspection before shipment ensures you receive tools that perform consistently.
  • Technical Support: Our team of engineers is ready to assist with cutting parameters and tool selection.

FAQ

Q1: Is this tool suitable for steel machining? A1: No, this 3-flute geometry is optimized for Aluminum and non-ferrous metals. For steel, we recommend our 4-flute coated series.
Q2: What is the advantage of a "Long Neck" over a "Long Flute"? A2: A long neck tool has a relieved shank behind the cutting edge. This is much more rigid than a long flute tool, reducing vibration and breakage when reaching into deep cavities.
Q3: Do you offer coating for these tools? A3: Standard stock is uncoated (bright finish) which is often best for aluminum to keep the edge sharp. However, we can provide DLC (Diamond-Like Carbon) coating upon request for extended tool life.
Q4: What is the lead time? A4: For items in stock (like the specifications listed above), we ship within 24-48 hours.
Q5: Can I customize the effective length? A5: Yes, as a manufacturer, we can customize the neck length or cutter diameter to your specific requirements. Please contact sales for a quote.
