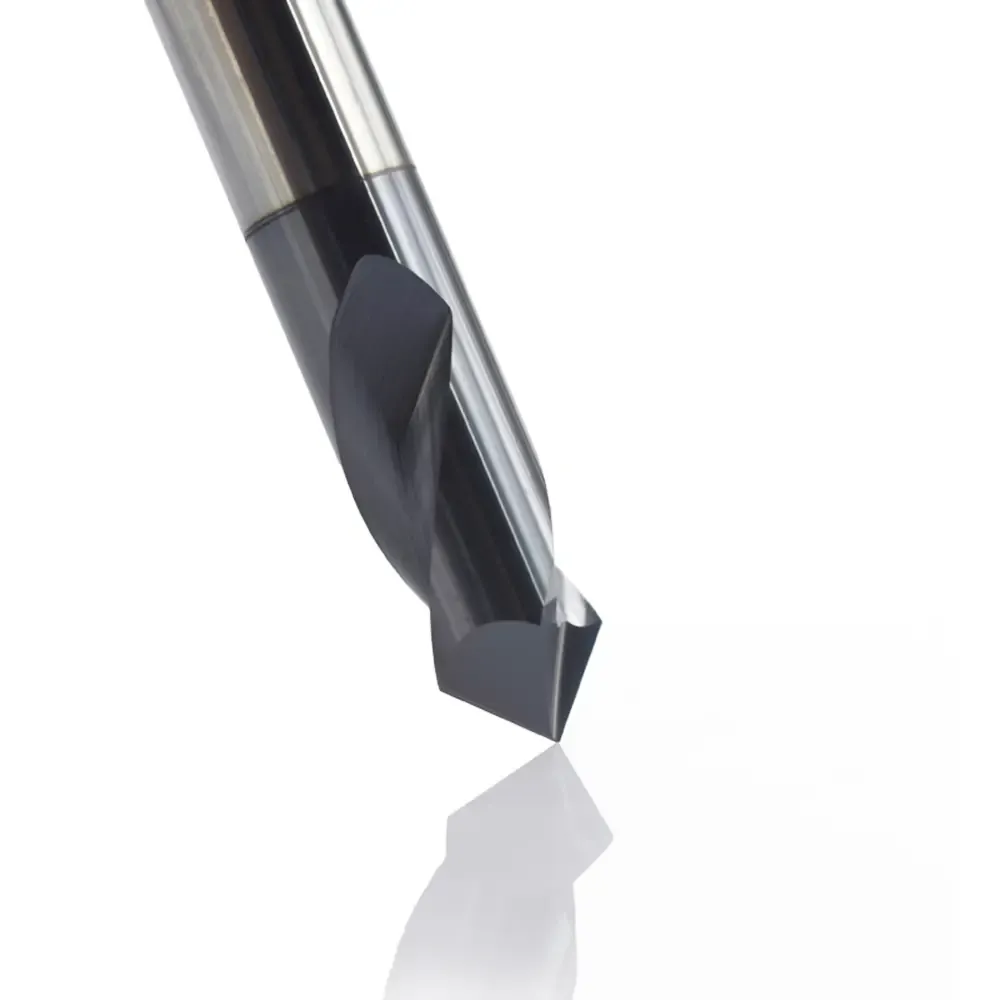

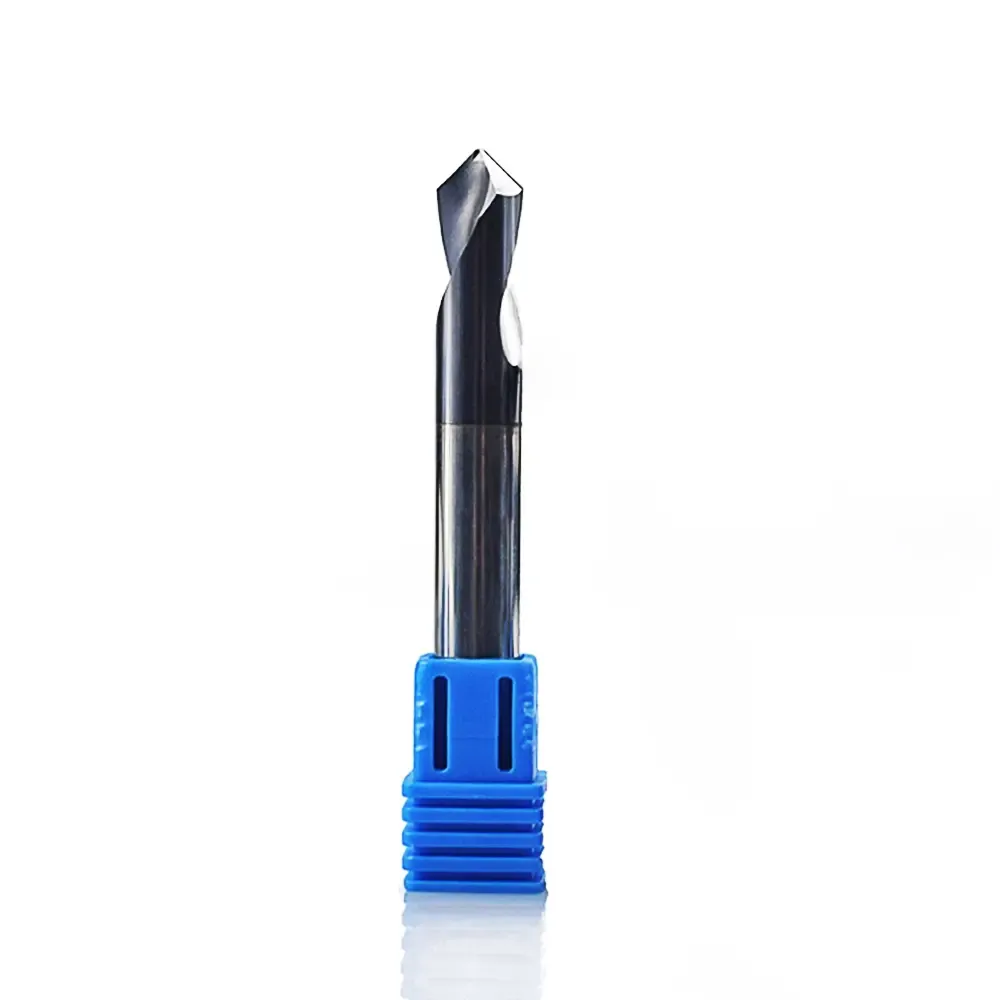

Solid Carbide Spiral Flute Chamfer Mill (60° / 90° / 120°)

Our premium Solid Carbide Spiral Flute Chamfer Mills are engineered for high-precision CNC machining. Unlike straight flute tools, the spiral flute design provides a smoother cutting action, significantly reduces vibration, and ensures excellent chip evacuation, making it ideal for both high-speed deburring and decorative chamfering.

Product Function

Chamfering & Deburring: Removing sharp edges and burrs from workpieces.

Spotting: Creating a precise starting point for drills to prevent walking.

V-Grooving: Precise V-shaped slotting and engraving.

Contouring: Edge profiling on various metal and non-metal materials.

Product Features

High-Grade Tungsten Steel: Manufactured from micro-grain carbide for exceptional hardness and wear resistance.

Spiral Flute Design: Optimized helix angle for cleaner cuts and faster chip removal compared to straight flutes.

Wide Range of Sizes: From micro-diameter 0.3mm for electronics to 12mm for heavy-duty industrial use.

Multiple Angles: Available in 60°, 90°, and 120° to meet all standard engineering requirements.

Long-Reach Options: Extended lengths (up to 100mm) available for deep-hole or hard-to-reach chamfering.

Specifications

We offer a comprehensive range of stock sizes. Custom sizes are available upon request.

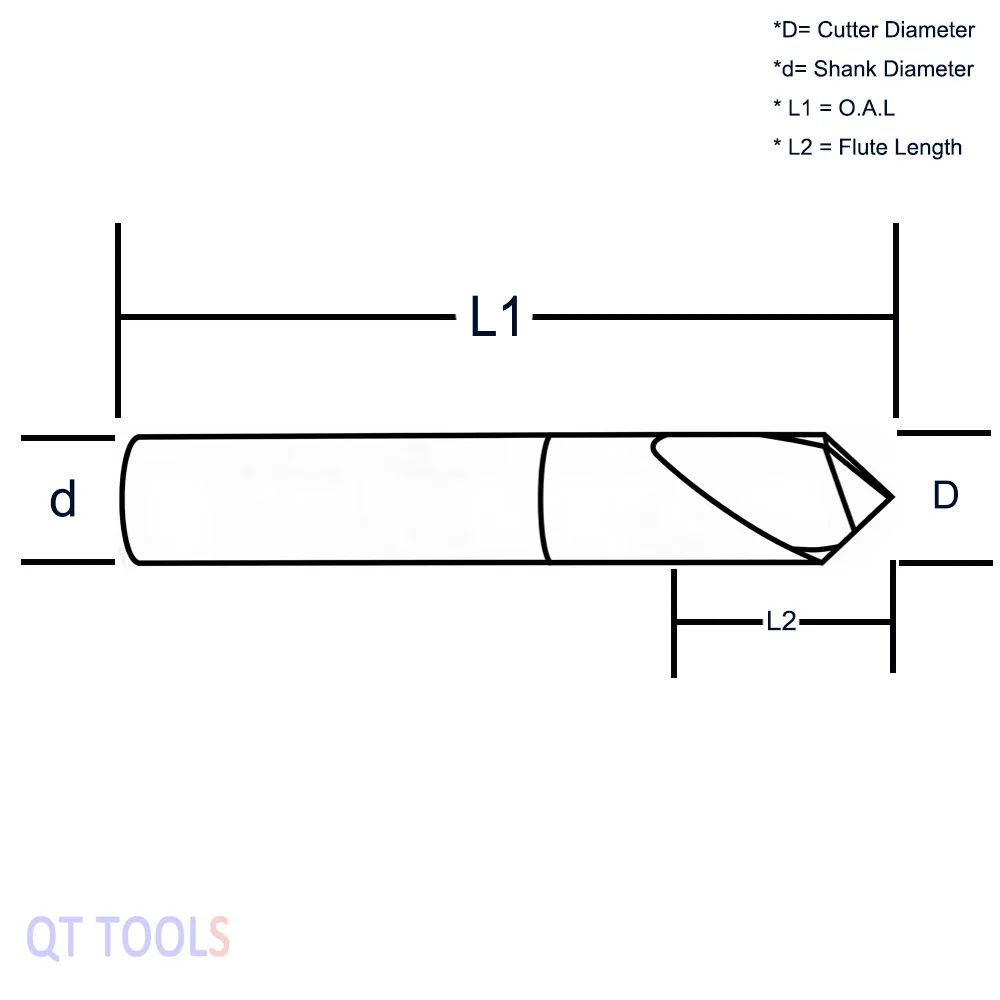

Blade Dia (D)	Angle (A)	Flute Length (L2)	Shank Dia (d)	Overall Length (L1)
60° Series
1.0 - 3.0 mm	60°	3.0 - 9.0 mm	3 / 4 mm	50 mm
4.0 - 12.0 mm	60°	12.0 - 36.0 mm	4 - 12 mm	50 - 75 mm
90° Series (Standard)
0.3 - 0.9 mm	90°	0.9 - 2.7 mm	4 mm	50 mm
1.0 - 4.0 mm	90°	3.0 - 12.0 mm	3 / 4 mm	50 mm
4.5 - 12.0 mm	90°	13.5 - 36.0 mm	5 - 12 mm	50 - 75 mm
90° Series (Long Reach)
4.0 - 12.0 mm	90°	12.0 - 36.0 mm	4 - 12 mm	75 - 100 mm
120° Series
1.0 - 12.0 mm	120°	3.0 - 36.0 mm	3 - 12 mm	50 - 75 mm

RPM/Feed (转速/进给) Reference Table

(Note: These are recommended starting values for 90° tools. Adjust based on machine rigidity and coolant.)

Material Type	Cutting Speed (VC)	Feed per Tooth (fz)
Aluminum / Copper	150-300 m/min	0.02 - 0.10 mm/t
Carbon Steel (HRC < 30)	100-180 m/min	0.01 - 0.08 mm/t
Alloy Steel (HRC 30-45)	60-120 m/min	0.01 - 0.05 mm/t
Stainless Steel	50-90 m/min	0.01 - 0.04 mm/t

Promotion Policy

Free sample: Free sample can be provided, if clients agree to pay for shipping cost.

First order coupon: New clients can enjoy USD50 discount coupon for first order, if the total order amount is more than USD500.

Big order discount: Clients can enjoy 2%~5% discount, if the total order amount is more than USD5000.

Clients Benefits

Reduced Cycle Time: High-speed spiral design allows for faster feed rates.

Superior Surface Finish: Eliminates secondary polishing stages due to clean cutting action.

Extended Tool Life: High-quality tungsten steel reduces the frequency of tool changes.

Versatility: One tool for spotting, chamfering, and deburring across multiple materials.

FAQ

Q: Can these tools be used on Stainless Steel?

A: Yes, our tungsten steel grade is suitable for stainless steel, though we recommend using proper coolant for best tool life.

Q: Do you offer coated versions?

A: Yes, we provide AlTiN or TiSiN coatings for high-hardness machining (up to HRC 65). Please specify when ordering.

Q: What is the lead time for stock items?

A: For the specifications listed above, we ship within 24-48 hours.

For more high-performance cutting solutions, please explore our full range of Solid Carbide End Mills.
