Solid Carbide Helical Flute Chamfer Mill for Aluminum - 60° 90° 120° CNC Deburring End Mill

High-precision Tungsten Steel Helical Flute Chamfer Mills for Aluminum. Available in 60°/90°/120° angles with diameters from 0.3mm to 12mm. Features superior chip evacuation and smooth finish for CNC deburring. Factory direct price & fast shipping.

Contact Us

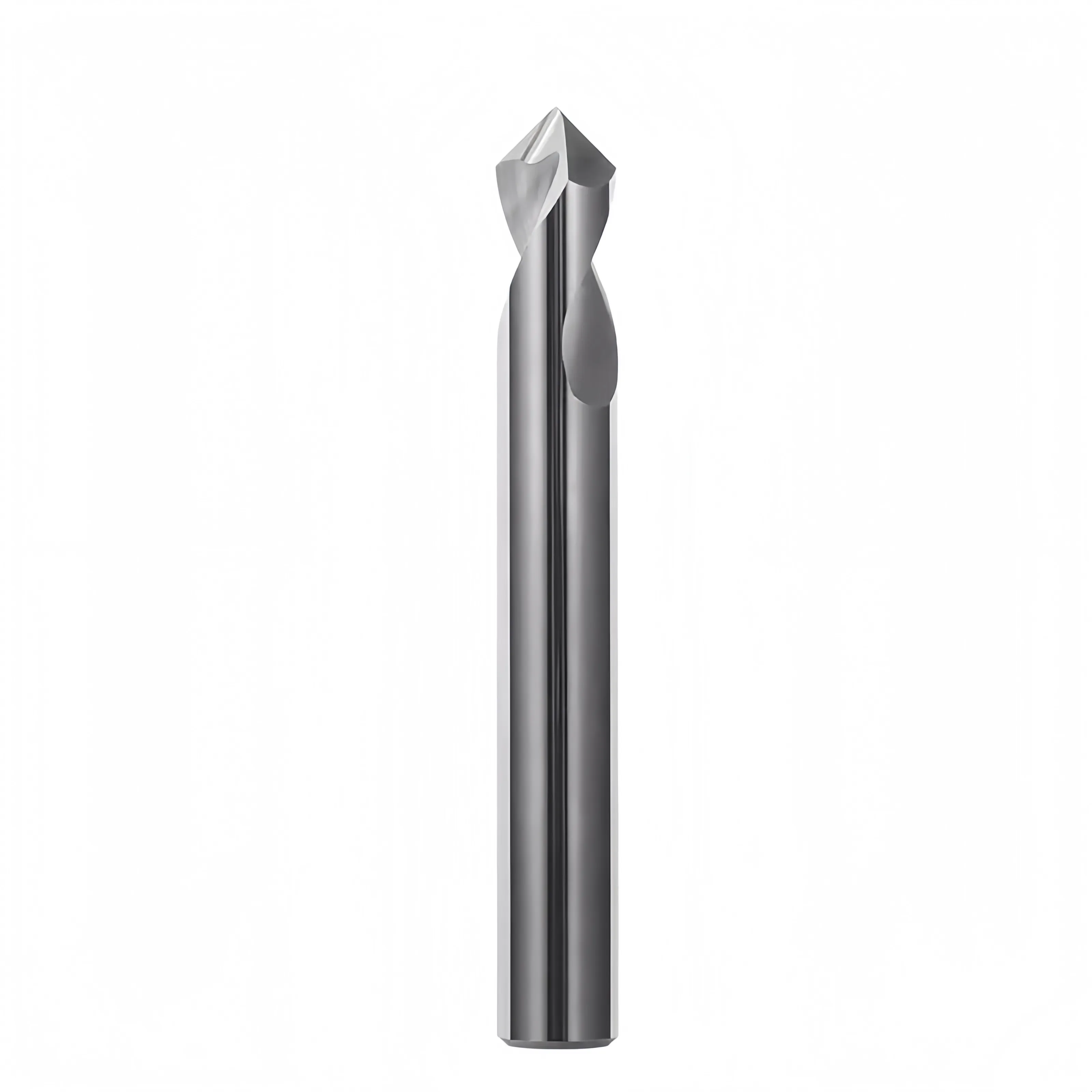

Solid Carbide Helical Flute Chamfer Mill for Aluminum

Our premium Tungsten Steel Helical Flute Chamfer Mills are specifically engineered for high-performance machining of aluminum and non-ferrous metals. The helical flute design ensures smoother cutting action and superior chip evacuation compared to straight flute alternatives, making it the ideal choice for precision deburring and V-grooving.

Product Function

  • Precise Chamfering: Creating accurate beveled edges on aluminum workpieces.
  • Efficient Deburring: Removing sharp edges and burrs after milling or drilling.
  • V-Grooving & Centering: Can be used for decorative V-grooves and spot drilling on soft metals.
  • Contour Machining: Suitable for edge profiling and 3D chamfering.

Product Features

  • High-Grade Tungsten Steel: Made from premium micro-grain carbide for exceptional hardness and wear resistance.
  • Optimized Helical Flute: The spiral design reduces cutting resistance and prevents "chip welding," which is critical when machining aluminum.
  • Multiple Angles: Available in 60°, 90°, and 120° to meet various engineering requirements.
  • Extreme Size Range: We offer micro-diameters starting from 0.3mm up to 12mm.
  • Mirror-Like Surface Finish: The polished flute ensures a smooth, burr-free finish on the workpiece.

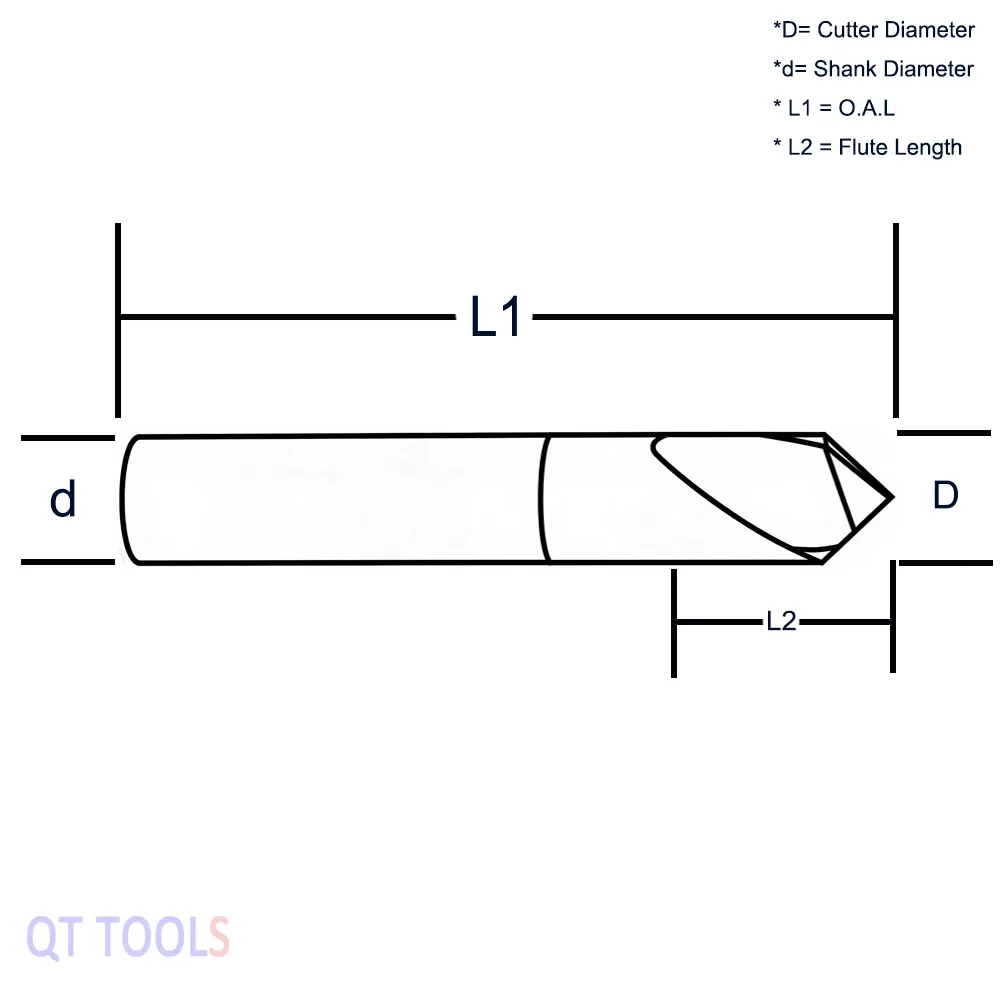

Specifications

Shank Dia (mm)
Blade Dia (mm)
Angle
Flute Length (mm)
Overall Length (mm)
4.0
0.3 - 4.0
60° / 90° / 120°
0.9 - 12.0
50 - 100
6.0
4.5 - 6.0
60° / 90° / 120°
13.5 - 18.0
50 - 100
8.0
6.5 - 8.0
60° / 90° / 120°
19.5 - 24.0
60 - 100
10.0
10.0
60° / 90° / 120°
30.0
75 - 100
12.0
12.0
60° / 90° / 120°
36.0
75 - 100
(Note: Full range of sizes from 0.3mm to 12.0mm available in stock. Custom lengths are supported.)

RPM/Feed (转速/进给) 参考表

Tool Diameter (mm)
Spindle Speed (RPM)
Feed Rate (mm/min)
Cutting Depth (Ap)
1.0 - 3.0
12,000 - 15,000
400 - 800
0.05 - 0.2
4.0 - 6.0
8,000 - 10,000
800 - 1,200
0.2 - 0.5
8.0 - 10.0
6,000 - 8,000
1,000 - 1,500
0.5 - 1.0
12.0
4,500 - 6,000
1,200 - 1,800
1.0 - 1.5
Note: The above parameters are for reference. Adjust based on your machine rigidity and specific aluminum alloy grade.

Promotion Policy

  1. Free sample: Free sample can be provided, if clients agree to pay for shipping cost.
  1. First order coupon: New clients can enjoy USD50 discount coupon for first order, if the total order amount is more than USD500.
  1. Big order discount: Clients can enjoy 2%~5% discount, if the total order amount is more than USD5000.

Clients Benefits

  • Reduced Tool Costs: High-grade carbide extends tool life by 30-50% compared to standard tools.
  • Improved Productivity: Faster feed rates and less downtime for tool changes.
  • Factory Direct Pricing: Get wholesale prices directly from our manufacturing plant.
  • Stable Supply: Large inventory of all sizes (0.3mm-12mm) ensures 24-hour dispatch.

FAQ

Q1: Is this tool suitable for dry cutting? A1: While it can be used for dry cutting, we recommend using MQL (Minimum Quantity Lubrication) or water-soluble coolant for the best finish and tool life when machining aluminum.
Q2: Do you offer 45-degree or other custom angles? A2: Yes, our standard stock includes 60/90/120 degrees (Total Angle). We can provide 45-degree or other custom geometries upon request.
Q3: Can these be used on stainless steel? A3: This specific series is optimized for aluminum. For stainless steel, please check our AlTiN coated chamfer mill series.
