ISO Metric Thread Mills
Premium 60° 3-Tooth Carbide Thread Mills for Steel & Stainless Steel - TiAlCN Coated
High-efficiency 60° 3-tooth solid carbide thread mills. Made with Walter (Germany) substrate & TiAlCN coating for steel, stainless & alloys. Fast & precise threading!
60° 3-Tooth Solid Carbide Thread Mills for Steel & Stainless Steel (TiAlCN Coated)
Upgrade your high-speed CNC threading operations with our premium 60° 3-Tooth Solid Carbide Thread Mills. Specially engineered for steel, stainless steel, cast iron, and high-temp alloys, the 3-tooth design strikes the perfect balance between rapid machining speed and low cutting torque, providing superior thread quality without the risk of tool deflection.
Product Function

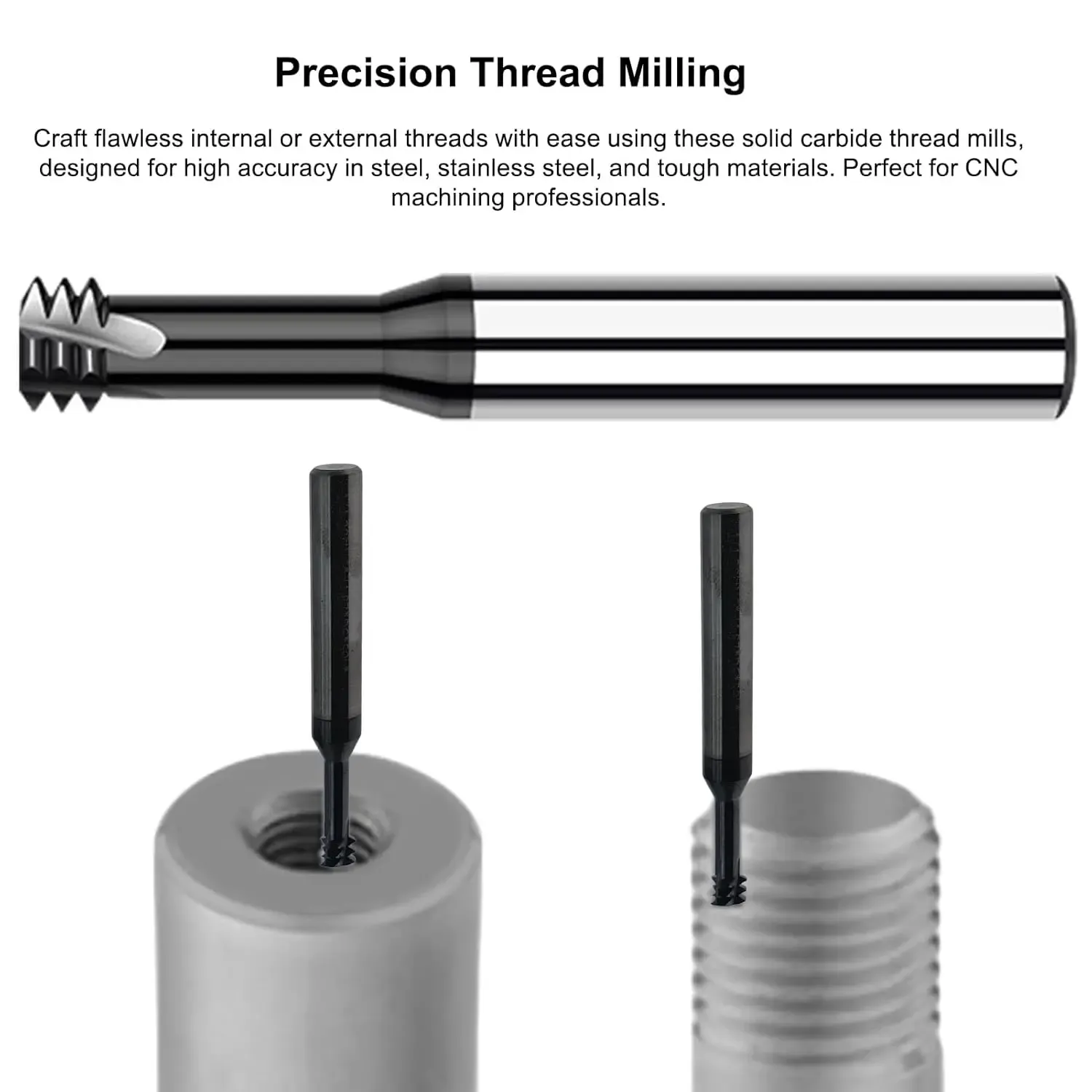

Designed for high-efficiency internal metric threading (both Coarse and Fine threads), these 3-tooth thread mills perform helical interpolation to cut threads in a fraction of the time required by single-point tools.
- High-Speed Threading: Completes full thread profiles in fewer helical orbits compared to single-point mills.
- Low-Vibration Cut: Generates significantly lower cutting forces than full-form thread mills, eliminating taper and chatter in deep or tough hole applications.
Product Features
- German Walter Substrate: Built on premium ultra-micro grain tungsten carbide manufactured by Walter (Germany), delivering exceptional toughness and wear resistance.
- Specialized TiAlCN Coating: High-hardness Titanium Aluminum Carbonitride coating provides superior thermal protection and low friction coefficient—specifically optimized for:
- Carbon Steel & Alloy Steel
- Stainless Steel (304, 316)
- Cast Iron
- Mold Steel (up to HRC 55)
- Titanium Alloys & Nickel Alloys
- Dual Thread Profiles Available: Full range covering both Coarse Threads (M1.0 to M24) and Fine Threads (M4.0 to M20).

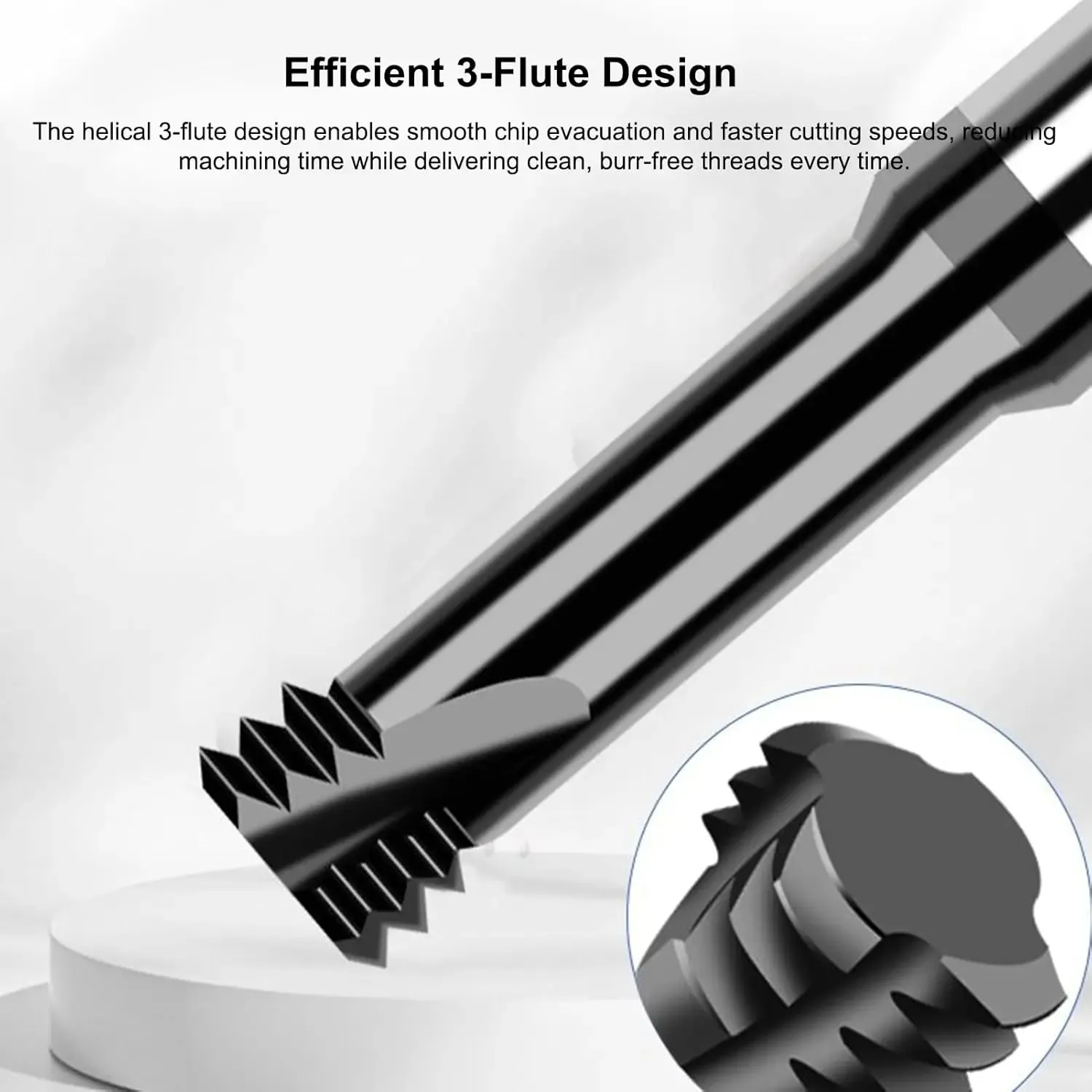

- High Rigidity Structure: Sturdy shank diameters (D4 to D16) and optimized flute geometry (3F/4F) ensure maximum tool strength and smooth chip evacuation.
Specifications
Coarse Thread Models
Thread Size | Pitch | Shank Dia. (D) | Model Code | Flutes | OAL |
|---|---|---|---|---|---|
M1.0 | 0.25 | D4 | M1.00.25D0.73L2.33FD450L | 3F | 50mm |
M2.0 | 0.40 | D4 | M2.00.4D1.54L4.43FD450L | 3F | 50mm |
M3.0 | 0.50 | D4 | M3.00.5D2.4L6.43FD450L | 3F | 50mm |
M6.0 | 1.00 | D6 | M6.01.0D4.8L133FD650L | 3F | 50mm |
M8.0 | 1.25 | D6 | M8.01.25D6L17.53FD650L | 3F | 50mm |
M10.0 | 1.50 | D8 | M10.01.5D8L21.83FD860L | 3F | 60mm |
M12.0 | 1.75 | D10 | M12.01.75D10L244FD1075L | 4F | 75mm |
M16.0 | 2.00 | D12 | M16.02.0D11.5L274FD1275L | 4F | 75mm |
M20.0 | 2.50 | D16 | M20.02.5D16L364FD1690L | 4F | 90mm |
M24.0 | 3.00 | D16 | M24.03.0D16L454FD1690L | 4F | 90mm |
Fine Thread Models
Thread Size | Pitch | Shank Dia. (D) | Model Code | Flutes | OAL |
|---|---|---|---|---|---|
M4.0 | 0.50 | D4 | M4.00.5D3L8.63FD450L | 3F | 50mm |
M6.0 | 0.75 | D6 | M6.00.75D4.8L133FD650L | 3F | 50mm |
M8.0 | 1.00 | D6 | M8.01.0D6L17.33FD650L | 3F | 50mm |
M10.0 | 1.25 | D8 | M10.01.25D8L21.83FD860L | 3F | 60mm |
M12.0 | 1.50 | D10 | M12.01.5D10L254FD1075L | 4F | 75mm |
M16.0 | 1.50 | D12 | M16.01.5D12L304FD1275L | 4F | 75mm |
M20.0 | 2.00 | D16 | M20.02.0D16L404FD1690L | 4F | 90mm |
(Full range of coarse and fine thread sizes available in stock) |
Recommended Cutting Parameters (RPM/Feed)
Parameters below are reference values for TiAlCN coated 3-tooth thread mills in flooded coolant or oil air mist conditions.
Workpiece Material | Hardness | Cutting Speed (Vc: m/min) | Feed per Tooth (fz: mm/t) |
|---|---|---|---|
Low / Medium Carbon Steel | < 28 HRC | 100 - 150 | 0.02 - 0.05 |
Alloy Steel / Tool Steel | 28 - 38 HRC | 80 - 120 | 0.02 - 0.04 |
Pre-Hardened Mold Steel | 38 - 50 HRC | 50 - 90 | 0.01 - 0.03 |
Stainless Steel (304 / 316) | - | 60 - 100 | 0.01 - 0.03 |
Cast Iron (Gray & Ductile) | - | 90 - 140 | 0.02 - 0.06 |
Promotion Policy
- Volume Pricing: Tiered discounts available for orders of 10+, 50+, and 100+ pieces.
- Customization: Custom reach lengths, pitches, and coating options (TiSiN, DLC) available upon request.
- Sample Support: Special testing discounts for initial trial orders from CNC machine shops.
- Fast Delivery: Standard models dispatched within 24 hours.
Client Benefits
- 3X Faster Processing: Drastically reduces cycle time compared to single-point thread mills while keeping total cutting resistance manageable.
- No Deflection or Taper: Unlike full-profile thread mills that engage the entire thread length at once, the 3-tooth design reduces load, preventing tool deflection in deep holes.
- Extended Tool Life: German Walter tungsten carbide substrate combined with TiAlCN coating ensures exceptional heat resistance and edge retention.
- Zero-Scrap Safety: If a thread mill wears out or breaks, it can be removed easily without ruining expensive workpieces (unlike broken taps).
FAQ
Q: How does a 3-tooth thread mill differ from a single-point thread mill?
A: A single-point thread mill has 1 teeth profile along the axial direction and cuts one pitch per pass, making it pitch-universal but slower. A 3-tooth thread mill has 3 teeth forms in a line, cutting threads much faster while maintaining low tool pressure.
Q: Can a 3-tooth thread mill cut different pitches?
A: No. Because the 3 teeth are ground to a specific pitch distance (e.g., 1.5mm), each model is dedicated to its matching pitch. However, it can cut both right-hand and left-hand threads of that specific pitch.
Q: Is coolant required when using TiAlCN coated thread mills?
A: Water-soluble coolant or neat oil mist is recommended when machining steel and stainless steel to flush chips efficiently and prolong tool life.
Q: Do you offer G-code programming assistance for thread milling?
A: Yes! Our technical sales engineers can provide helical interpolation macro programs tailored to your machine controller (Fanuc, Siemens, Heidenhain, Haas).
