HRC70 Carbide End Mill | Corner Protected for Titanium & Steel

HRC70 Solid Carbide Square End Mills with **Corner Protection Design**. Optimized for Titanium, Inconel, and Hardened Steel to prevent chipping. High precision, special coating, and full inventory (1mm-20mm). Buy direct from factory.

Contact Us

Product Function

Our HRC70 Square Carbide End Mill is engineered for the most demanding CNC milling operations. Designed primarily for side milling, slotting, and profile milling, this tool excels in removing material efficiently.
Crucially, the reinforced corner protection design ensures stability when entering the workpiece, making it the ideal solution for machinists needing to cut extremely hard materials or difficult-to-machine superalloys without the risk of premature corner chipping.

Product Features

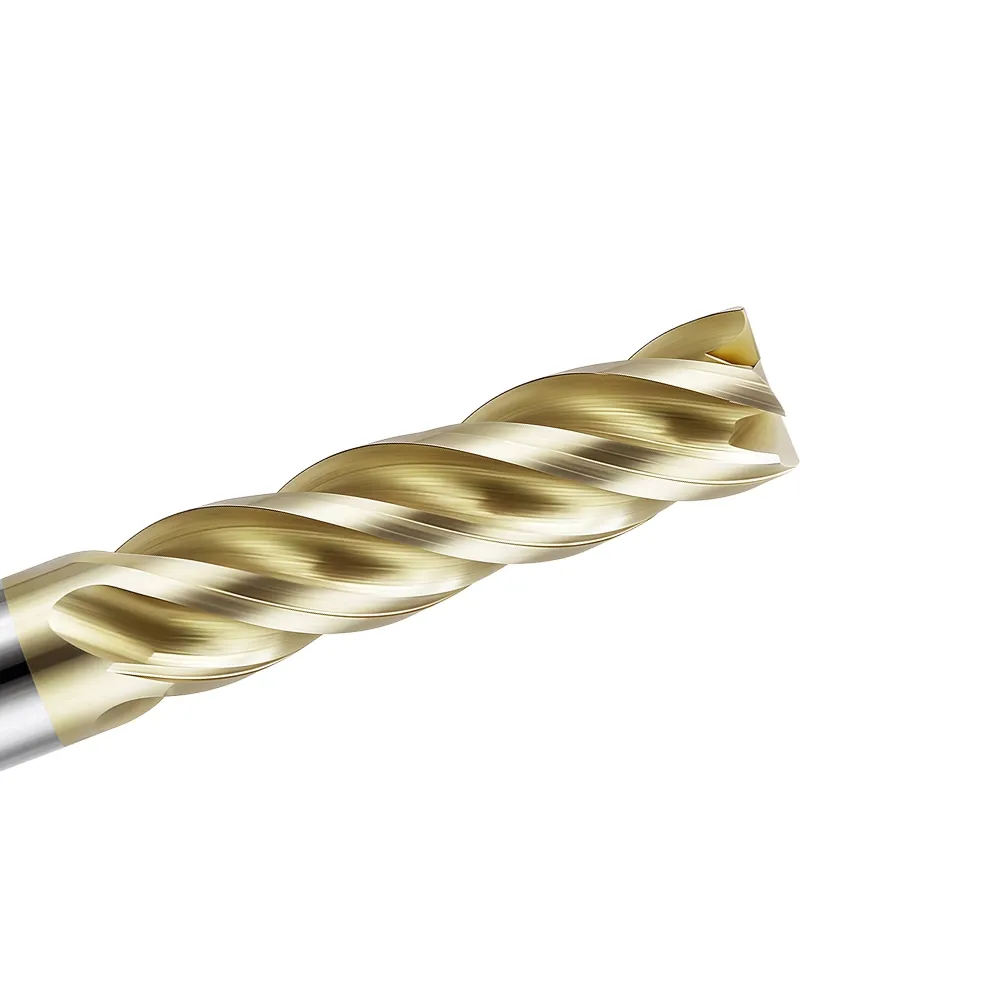

  • Corner Protection Design: Features a specialized micro-geometry at the cutting tips. This "Corner Protection" significantly reduces the risk of chipping (breakage) at the weakest point of the tool, ensuring stable machining in high-hardness materials.
  • Superior Hardness (HRC70): Made from ultra-fine micro-grain tungsten carbide, offering exceptional wear resistance and rigidity.
  • Special Advanced Coating: Features a proprietary high-heat resistant coating that reduces friction and prevents built-up edge (BUE), crucial for machining sticky materials like Titanium and Stainless Steel.
  • Wide Material Applicability: Perfectly suited for Titanium Alloys, Heat-Resistant Superalloys (Inconel), Stainless Steel (304/316), Mold Steel, and Hardened Carbon Steel.
  • Vibration Absorption: The flute geometry is optimized to minimize vibration and chatter, ensuring a superior surface finish.

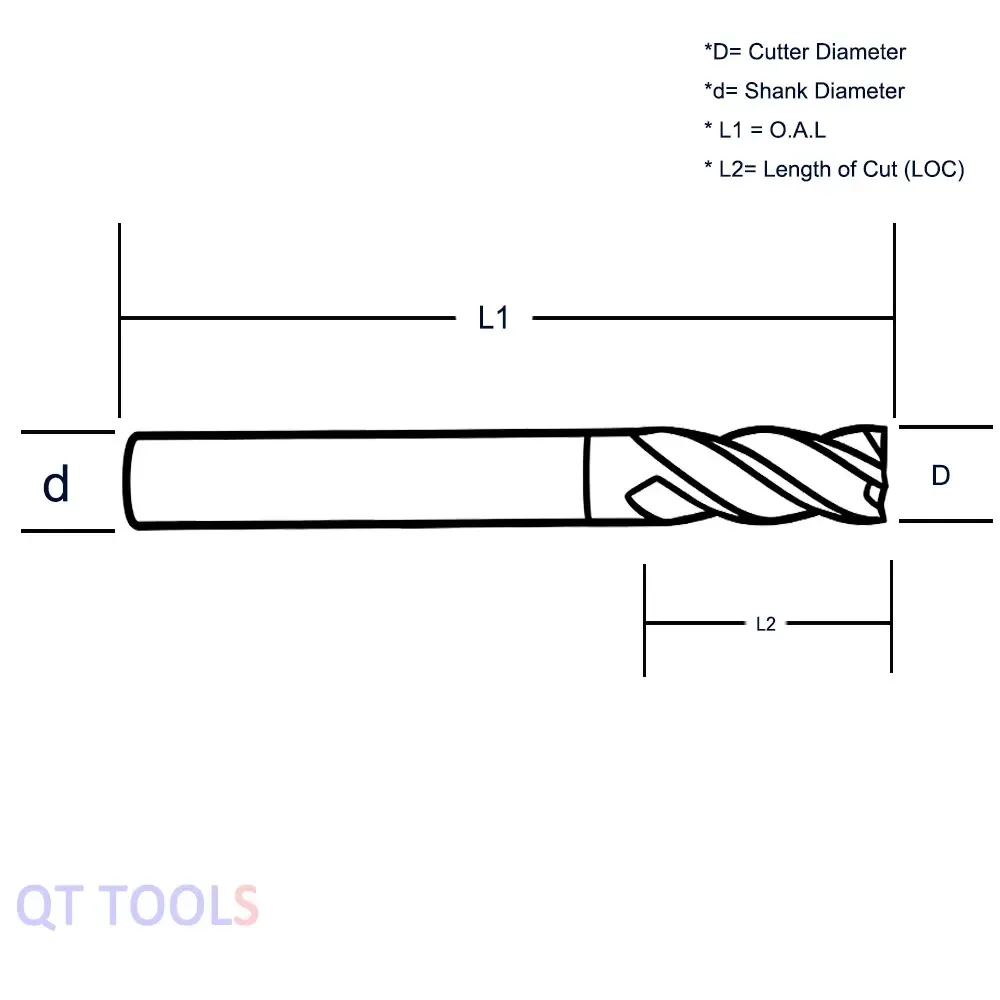

Specifications

Stock Status: In Stock / Ready to Ship
Cutter Diameter (mm)
Shank Diameter (mm)
Length of Cut (mm)
Over All Length (mm)
1
4
3
50
1.5
4
3
50
2
4
4
50
2.5
4
5
50
3
4
6
50
4
4
8
50
4
4
15
75
4
4
20
100
6
6
15
50
6
6
24
75
6
6
30
100
6
6
45
150
8
8
20
60
8
8
30
75
8
8
35
100
8
8
50
150
10
10
25
75
10
10
40
100
10
10
60
150
12
12
30
75
12
12
40
100
12
12
60
150
14
14
40
100
14
14
70
150
16
16
40
100
16
16
70
150
18
18
40
100
18
18
70
150
20
18
40
100
20
20
70
150
(Note: "L" in the chart indicates extended length versions)

RPM/Feed Reference (Recommended Parameters)

Please adjust based on your specific machine rigidity and cooling system. The following data is for Side Milling.
Material
Hardness
Tool Dia (mm)
RPM (r/min)
Feed (mm/min)
Titanium Alloy
-
6
2500-3500
150-250


10
1600-2200
180-300
Stainless Steel
300 Series
6
3200-4500
300-500


10
2000-2800
350-600
Hardened Steel
HRC 50-60
6
2800-4000
400-600


10
1800-2500
450-700

Promotion Policy

We value every partnership and offer the following incentives to support your business:
  1. Free Sample: Free sample can be provided, if clients agree to pay for shipping cost.
  1. First Order Coupon: New clients can enjoy USD50 discount coupon for first order, if the total order amount is more than USD500.
  1. Big Order Discount: Clients can enjoy 2%~5% discount, if the total order amount is more than USD5000.

Clients Benefits

  • Longer Tool Life: Thanks to the corner protection geometry, our tools last 30-50% longer in hard steel compared to standard square end mills.
  • Factory Direct Price: Eliminate middlemen and get the most competitive pricing for HRC70 high-end tools.
  • Quality Assurance: 100% inspection before shipment using advanced Zoller measuring equipment.
  • Stable Inventory: We keep a large stock of standard sizes (1mm-20mm, including long series) to ensure fast delivery.

FAQ

Q1: What is "Corner Protection" and why do I need it? A: Corner protection is a reinforced geometry design at the tip of the flutes. It prevents the sharp corners from chipping instantly when they touch hard materials (like HRC60+ steel or Titanium). It maintains the "square" cut profile while drastically increasing durability.
Q2: Can this HRC70 end mill cut Aluminum? A: While it is hard enough, we do not recommend it. This tool has a coating designed for heat resistance in hard metals. For Aluminum, we recommend our uncoated or DLC-coated bright finish end mills to prevent sticking.
Q3: What is the delivery time for the items in the specification table? A: All items listed in the table are currently in stock. Orders usually ship within 24-48 hours after payment confirmation.
Q4: Do you offer OEM/ODM services? A: Yes, we can manufacture custom tools based on your drawings or specific requirements (e.g., specific corner radius or taper angles).
