HRC70 Square Carbide End Mill | High-Performance CNC Cutter for Titanium, Inconel & Hard Steel - Changzhou QT TOOLS

Product Function

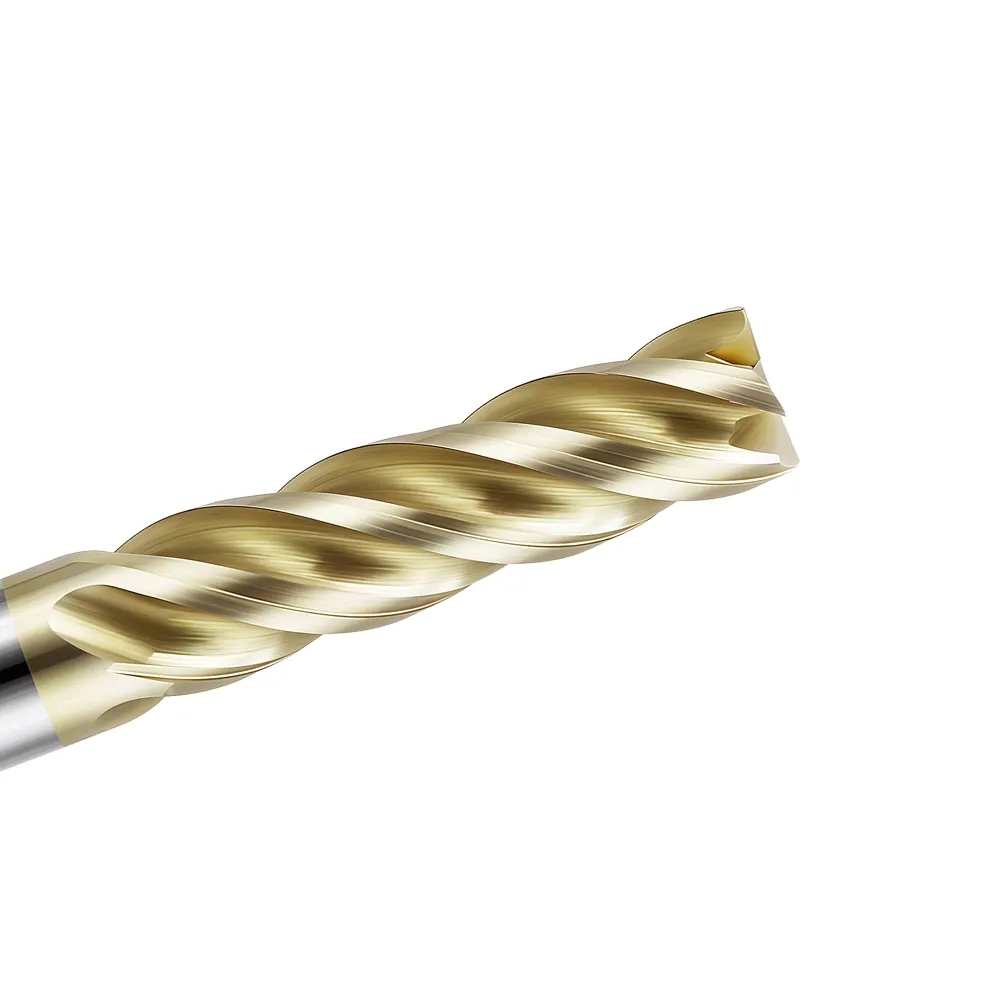

Our HRC70 Square Carbide End Mill is engineered for the most demanding CNC milling operations. Designed primarily for side milling, slotting, and profile milling, this tool excels in removing material efficiently while maintaining exceptional dimensional stability. It is the ideal solution for machinists needing to cut extremely hard materials or difficult-to-machine superalloys without frequent tool changes.

Product Features

Superior Hardness (HRC70): Made from ultra-fine micro-grain tungsten carbide, offering exceptional wear resistance and rigidity.

Special Advanced Coating: Features a proprietary high-heat resistant coating that reduces friction and prevents built-up edge (BUE), crucial for machining sticky materials like Titanium and Stainless Steel.

Wide Material Applicability: Perfectly suited for Titanium Alloys, Heat-Resistant Superalloys (Inconel), Stainless Steel (304/316), Mold Steel, and Hardened Carbon Steel.

Vibration Absorption: The flute geometry is optimized to minimize vibration and chatter, ensuring a superior surface finish.

Extended Reach Options: Available in standard lengths and extra-long series (up to 150mm) for deep cavity machining.

Specifications

Stock Status: In Stock / Ready to Ship

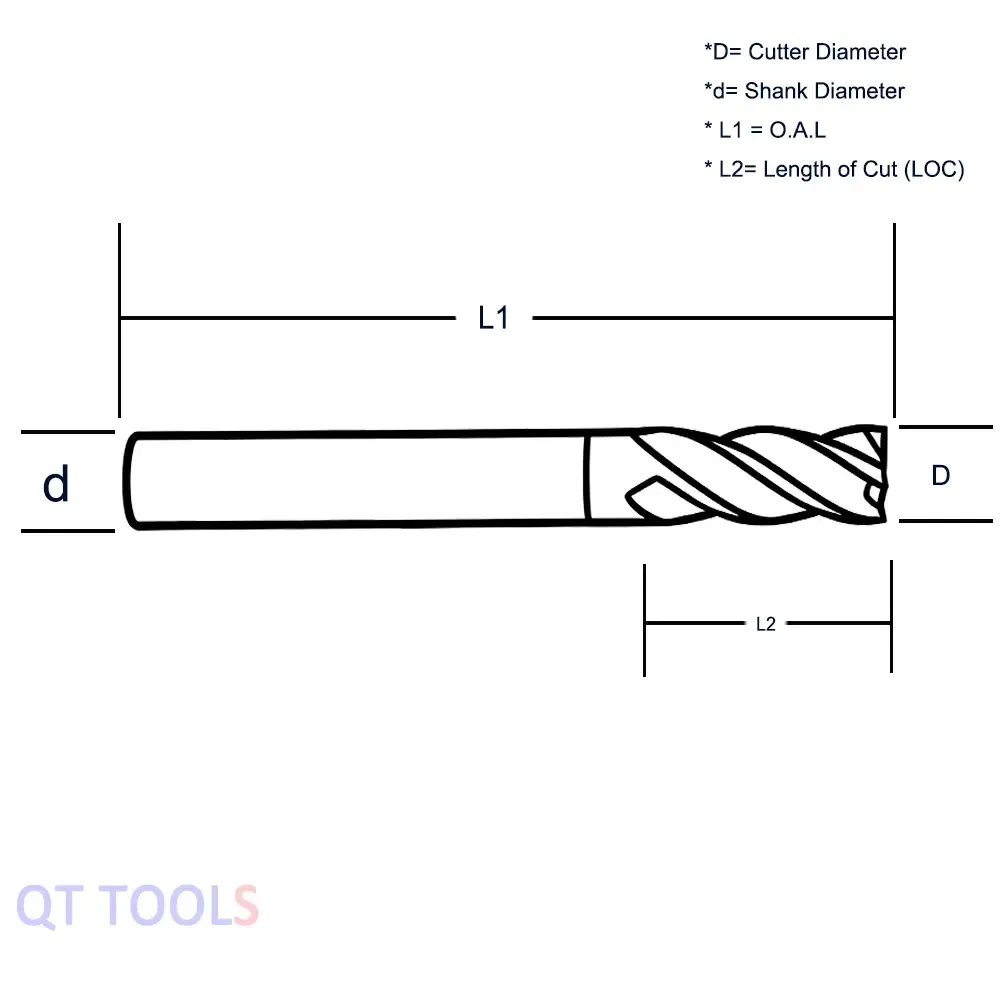

Cutter Diameter (mm) D	Shank Diameter (mm) d	Length of Cut (mm) L2	Over All Length (mm) L1
1	4	3	50
1.5	4	3	50
2	4	4	50
2.5	4	5	50
3	4	6	50
4	4	8	50
4	4	15	75
4	4	20	100
6	6	15	50
6	6	24	75
6	6	30	100
6	6	45	150
8	8	20	60
8	8	30	75
8	8	35	100
8	8	50	150
10	10	25	75
10	10	40	100
10	10	60	150
12	12	30	75
12	12	40	100
12	12	60	150
14	14	40	100
14	14	70	150
16	16	40	100
16	16	70	150
18	18	40	100
18	18	70	150
20	18	40	100
20	20	70	150

(Note: "L" in the chart indicates extended length versions)

RPM/Feed Reference (Recommended Parameters)

Please adjust based on your specific machine rigidity and cooling system. The following data is for Side Milling.

Material	Hardness	Tool Dia (mm)	RPM (r/min)	Feed (mm/min)
Titanium Alloy	-	6	2500-3500	150-250
		10	1600-2200	180-300
Stainless Steel	300 Series	6	3200-4500	300-500
		10	2000-2800	350-600
Hardened Steel	HRC 50-60	6	2800-4000	400-600
		10	1800-2500	450-700

Promotion Policy

We value every partnership and offer the following incentives to support your business:

Free Sample: Free sample can be provided, if clients agree to pay for shipping cost.

First Order Coupon: New clients can enjoy USD50 discount coupon for first order, if the total order amount is more than USD500.

Big Order Discount: Clients can enjoy 2%~5% discount, if the total order amount is more than USD5000.

Clients Benefits

Factory Direct Price: Eliminate middlemen and get the most competitive pricing for HRC70 high-end tools.

Quality Assurance: 100% inspection before shipment using advanced Zoller measuring equipment.

Stable Inventory: We keep a large stock of standard sizes (1mm-20mm, including long series) to ensure fast delivery.

Technical Support: Our engineering team is ready to assist you with cutting parameters and tooling solutions.

FAQ

Q1: Can this HRC70 end mill cut Aluminum? A: While it is hard enough, we do not recommend it. This tool has a coating designed for heat resistance in hard metals. For Aluminum, we recommend our uncoated or DLC-coated bright finish end mills to prevent sticking.

Q2: What is the delivery time for the items in the specification table? A: All items listed in the table are currently in stock. Orders usually ship within 24-48 hours after payment confirmation.

Q3: Do you offer OEM/ODM services? A: Yes, we can manufacture custom tools based on your drawings or specific requirements (e.g., different shank diameters, corner radius, or taper angles).

Q4: What shipping methods do you use? A: We typically use DHL, FedEx, UPS, or TNT for fast delivery (3-7 days). We can also use your shipping account if preferred.
