HRC55 Solid Carbide Long Neck Micro End Mill 4 Flute for Deep Rib Processing - Changzhou QT TOOLS

Product Function

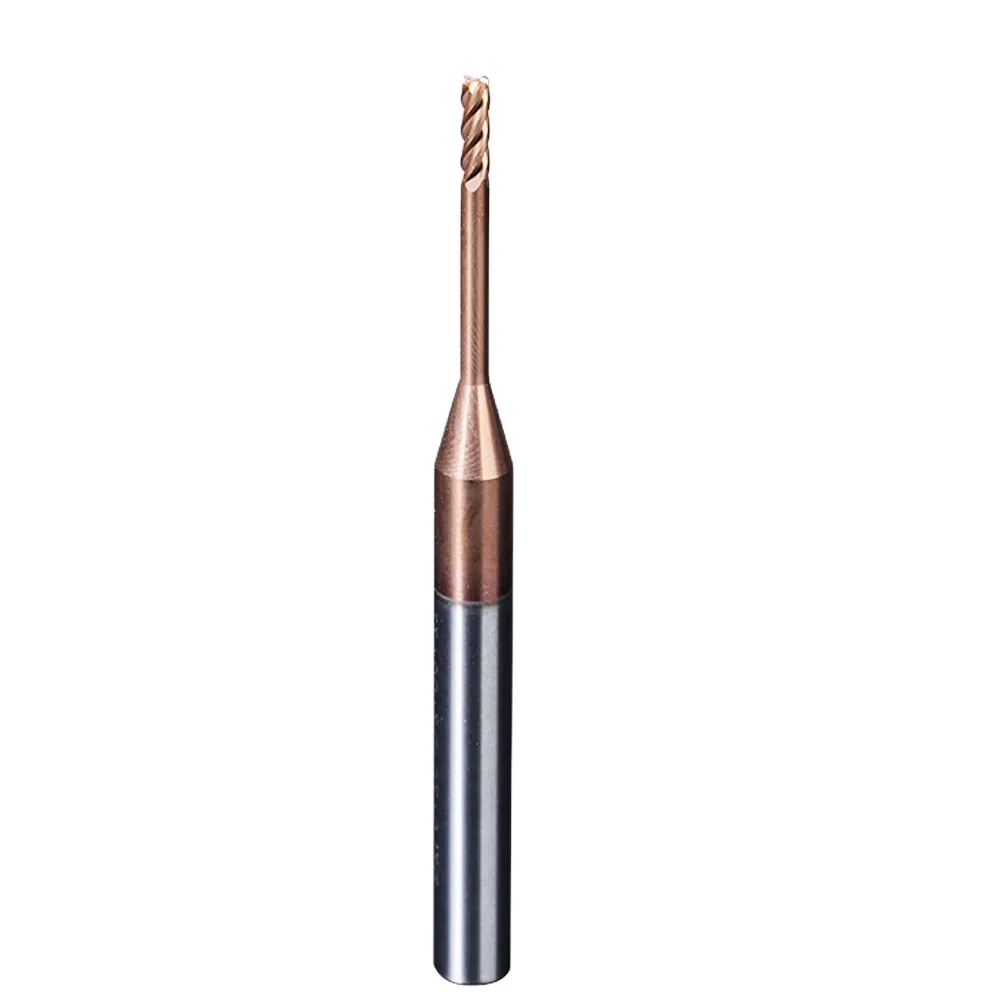

Designed specifically for the Mold & Die industry, this HRC55 Long Neck Micro End Mill is engineered to solve the challenge of deep-reach milling in narrow areas. The "Long Neck" (or Deep Rib) design allows the cutter to reach deep cavities and slots without the shank interfering with the workpiece wall, while the short flute length maintains maximum rigidity to prevent breakage.

It is the ideal tool for semi-finishing and finishing precision molds, ribs, and slots in hardened steels (up to HRC55), carbon steel, and alloy steel.

Product Features

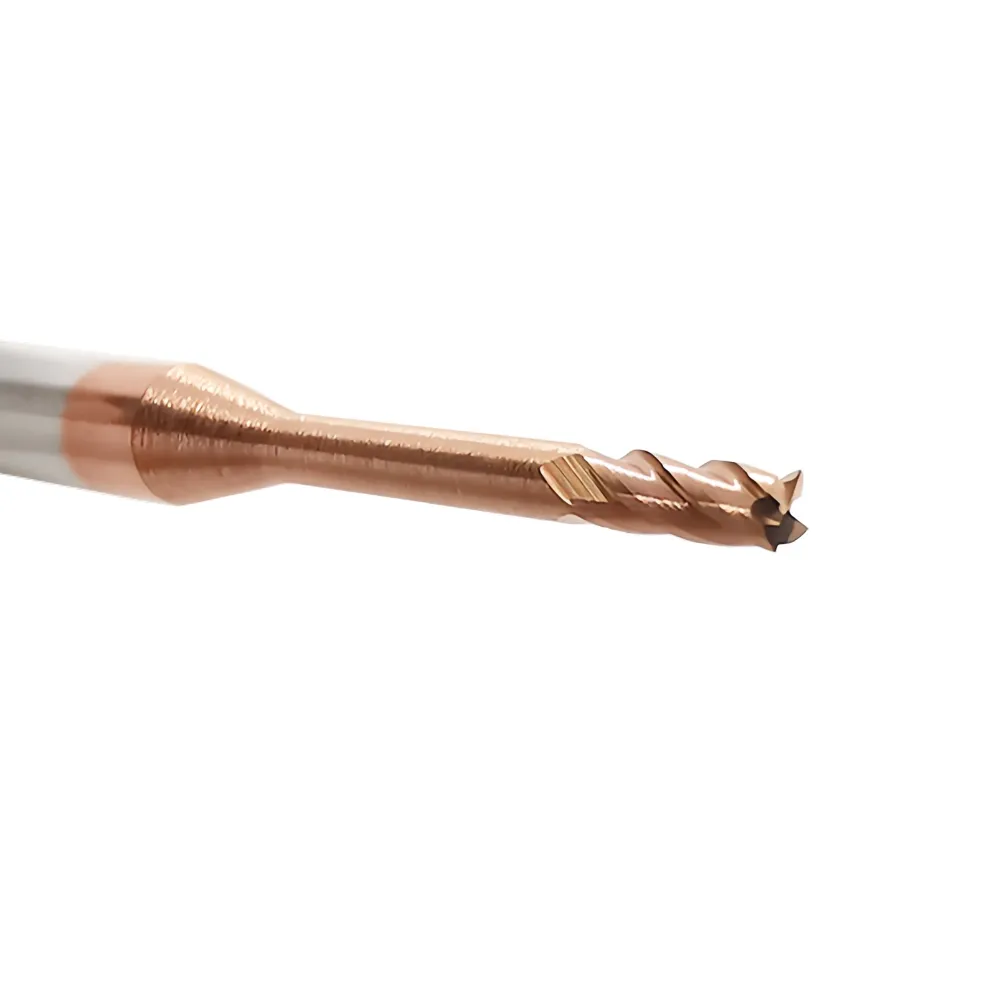

Deep Reach Capability: Features a relieved neck diameter allowing for deep milling in tight spots where standard end mills cannot reach.

High Rigidity: Short flute length (L2) combined with a robust carbide substrate reduces deflection and chatter, ensuring high dimensional accuracy.

4-Flute Design: Optimized for harder materials (HRC 45-55), providing a better surface finish and longer tool life compared to 2-flute alternatives.

Premium Material: Made from Ultra-Fine Micro Grain Tungsten Carbide for superior wear resistance.

Advanced Coating: Coated with high-performance AlTiN/TiSiN (depending on batch spec) to withstand high heat and abrasion during high-speed machining.

Specifications

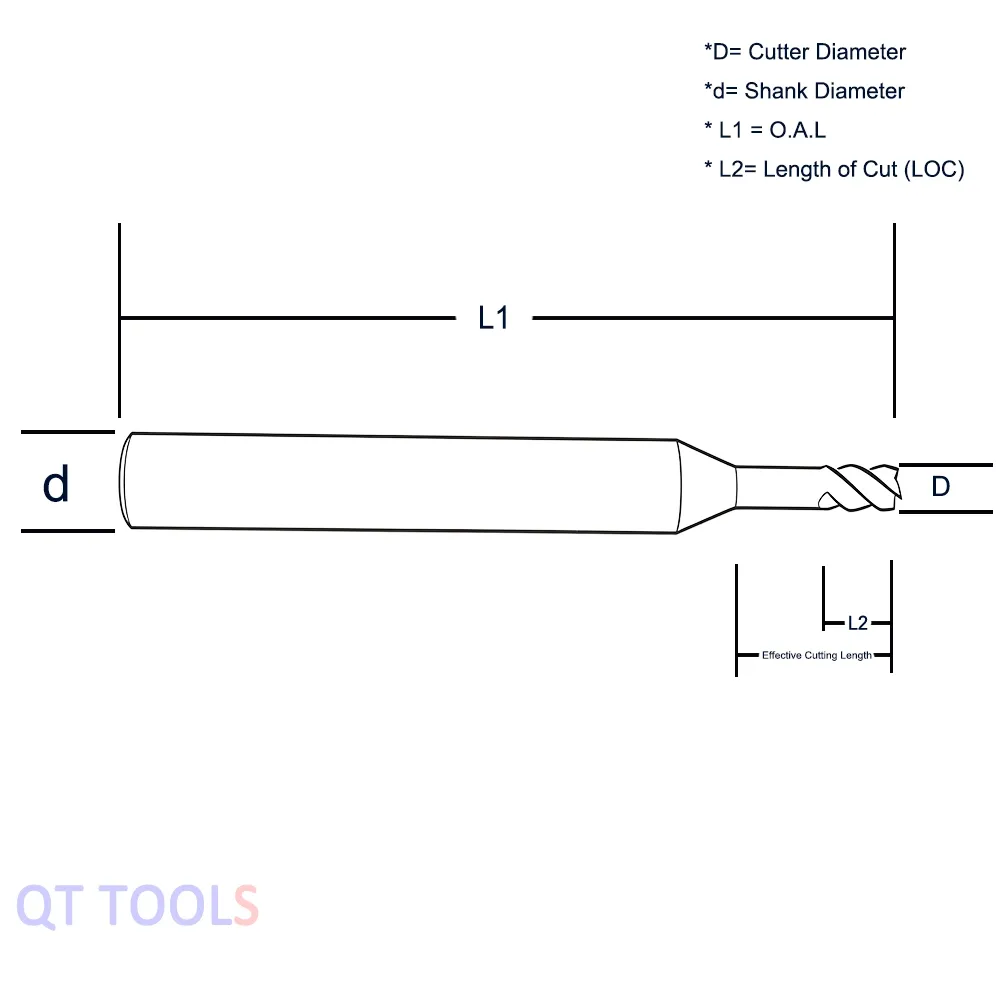

Cutter Diameter ( $\phi$ ) D	Shank Diameter (h6) d	Flute Length (L2)	Effective Length (Neck)	Overall Length (L1)	Flutes
1.0mm	4mm	2.5mm	4, 5, 6, 8, 10, 12, 14, 15, 16, 18, 20 mm	50mm	4F
1.0mm	4mm	2.5mm	25, 30 mm	60mm	4F
1.5mm	4mm	3.8mm	6, 8, 9, 10, 12, 14, 15, 16, 18, 20 mm	50mm	4F
1.5mm	4mm	3.8mm	25, 30 mm	60mm	4F
2.0mm	4mm	5.0mm	8, 10, 12, 14, 15, 16, 18, 20 mm	50mm	4F
2.0mm	4mm	5.0mm	25, 30 mm	60mm	4F
2.5mm	4mm	6.3mm	10, 12, 14, 15, 16, 18, 20 mm	50mm	4F
2.5mm	4mm	6.3mm	25, 30 mm	60mm	4F
3.0mm	4mm	7.5mm	10, 12, 14, 15, 16, 18, 20 mm	50mm	4F
3.0mm	4mm	7.5mm	25, 30 mm	60mm	4F
3.0mm	6mm	7.5mm	10, 12, 14, 16, 18, 20 mm	50mm	4F

RPM/Feed Reference Parameters

Note: The following data is for reference when machining Carbon Steel / Alloy Steel (up to HRC50).

Diameter (mm)	RPM ( $min^{-1}$ )	Feed Rate (mm/min)	Depth of Cut (Ap)
$\phi$ 1.0	15,000 ~ 25,000	250 ~ 500	0.02 ~ 0.05mm
$\phi$ 1.5	10,000 ~ 18,000	300 ~ 600	0.03 ~ 0.08mm
$\phi$ 2.0	8,000 ~ 14,000	350 ~ 700	0.05 ~ 0.10mm
$\phi$ 3.0	6,000 ~ 10,000	400 ~ 800	0.05 ~ 0.15mm

Adjust speed and feed according to the actual rigidity of the machine and the specific hardness of the material.

For Effective Lengths > 10x Diameter, reduce RPM and Feed by 20-30% to prevent vibration.

Promotion Policy

We value every partnership and offer exclusive incentives to support your business:

Free Sample: Free sample can be provided, if clients agree to pay for shipping cost.

First Order Coupon: New clients can enjoy USD50 discount coupon for first order, if the total order amount is more than USD500.

Big Order Discount: Clients can enjoy 2%~5% discount, if the total order amount is more than USD5000.

Client Benefits

Factory Direct Cost: Eliminate the middleman. Get premium carbide tools at manufacturer prices.

Consistent Quality: Produced on top-tier CNC grinding machines (e.g., Walter/Anca) ensuring tolerance consistency batch after batch.

Huge Inventory: As shown in the specs, we keep a wide range of effective lengths in stock for immediate dispatch.

Technical Support: Direct access to our engineering team for tool life optimization and parameter suggestions.

FAQ

Q1: What materials is this tool suitable for? A1: This 4-flute long neck end mill is optimized for Steel, Alloy Steel, Cast Iron, and Hardened Steel up to HRC55. It is not recommended for Aluminum (use our 3-flute or 2-flute uncoated carbide series for Al).

Q2: Why use a long neck instead of a long flute? A2: Long flutes are weak and prone to breakage. A long neck design retains a short, strong cutting head while providing the reach needed for deep pockets, offering much better stability and surface finish.

Q3: Can you customize the effective length? A3: Yes! While we have a vast standard stock list, we can customize the neck length, taper angle, or coating within 5-7 working days.

Q4: What is your MOQ? A4: For stock items, MOQ is 10 pieces. For custom orders, please contact our sales team.

Q5: How do you handle shipping? A5: We work with DHL, FedEx, and UPS to ensure fast global delivery. Tracking numbers are provided immediately upon dispatch.
