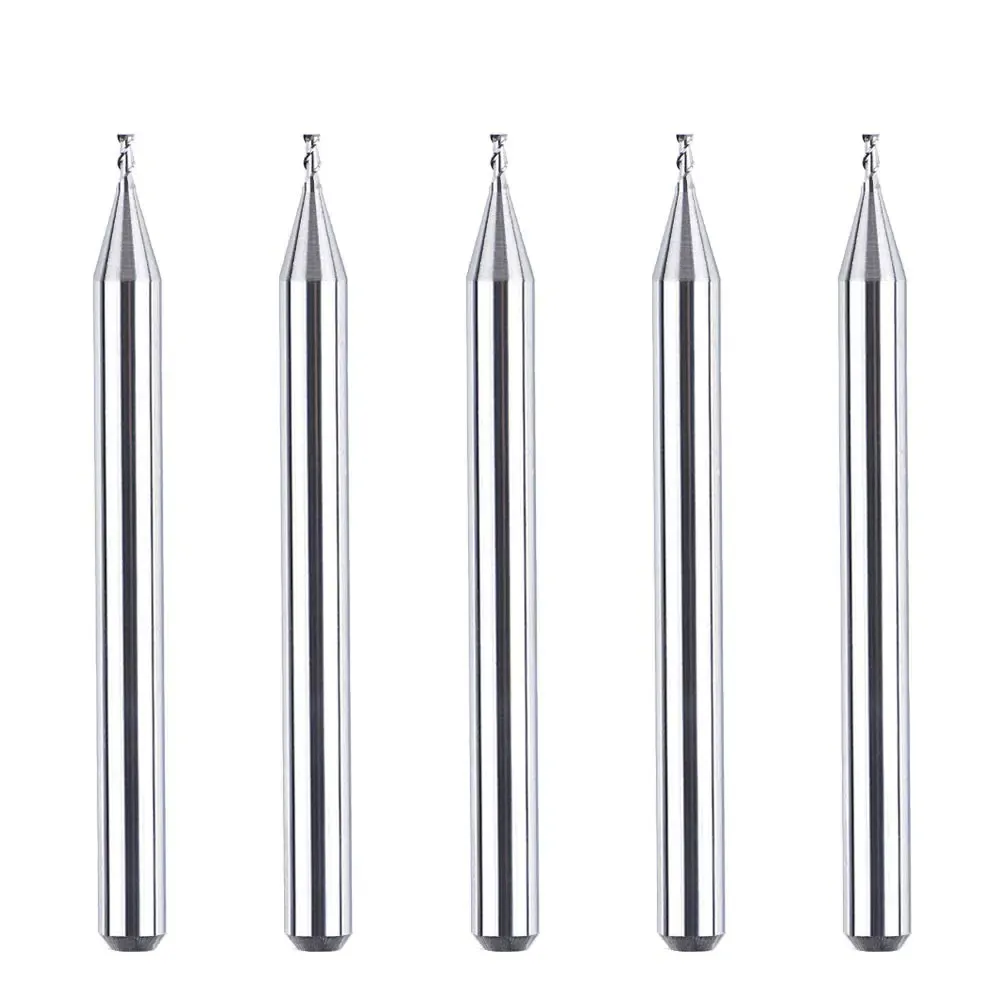

high-precision-tungsten-carbide-tools-0.01mm-increments
high-precision-tungsten-carbide-tools-0.01mm-increments

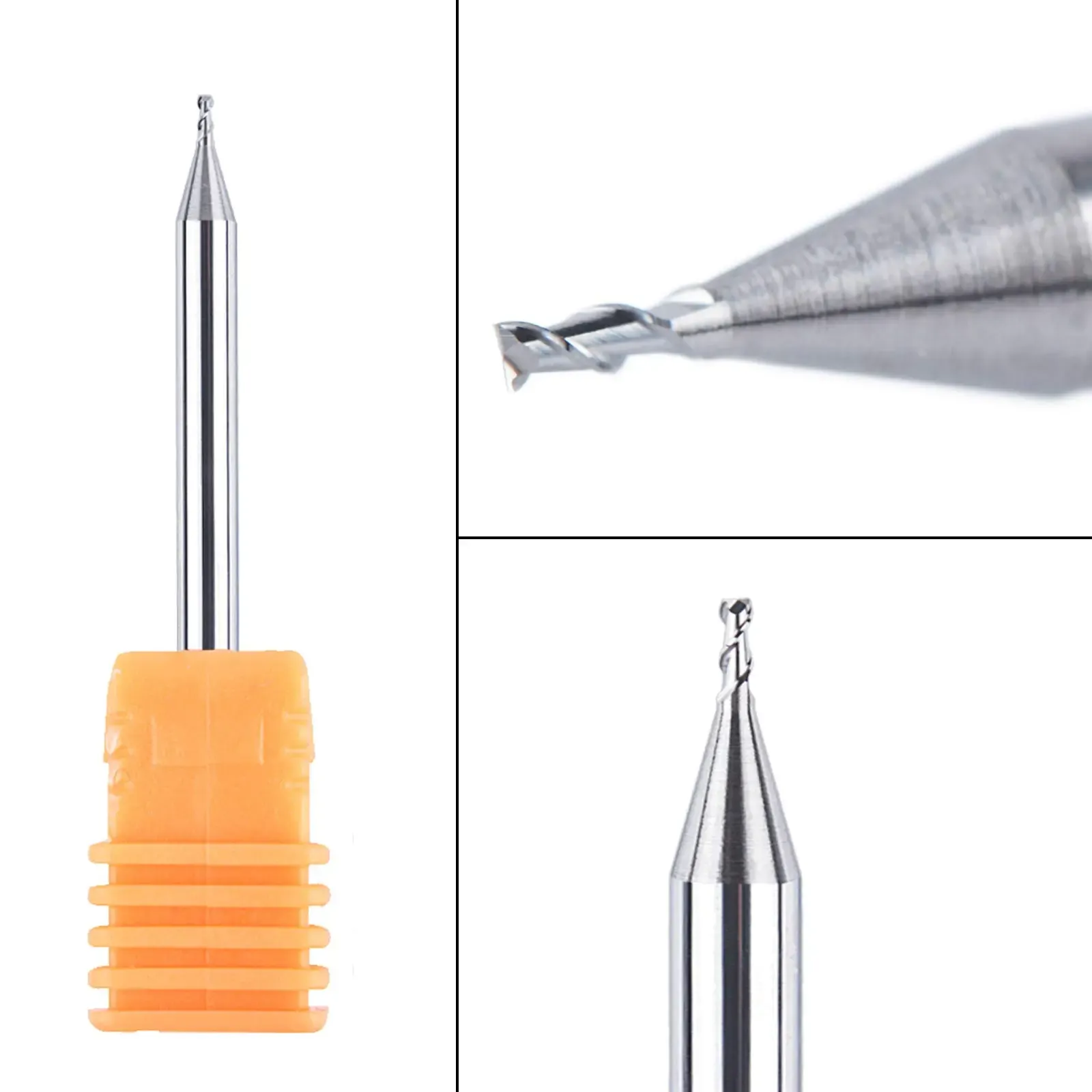

2-flute-carbide-micro-milling-cutter-details

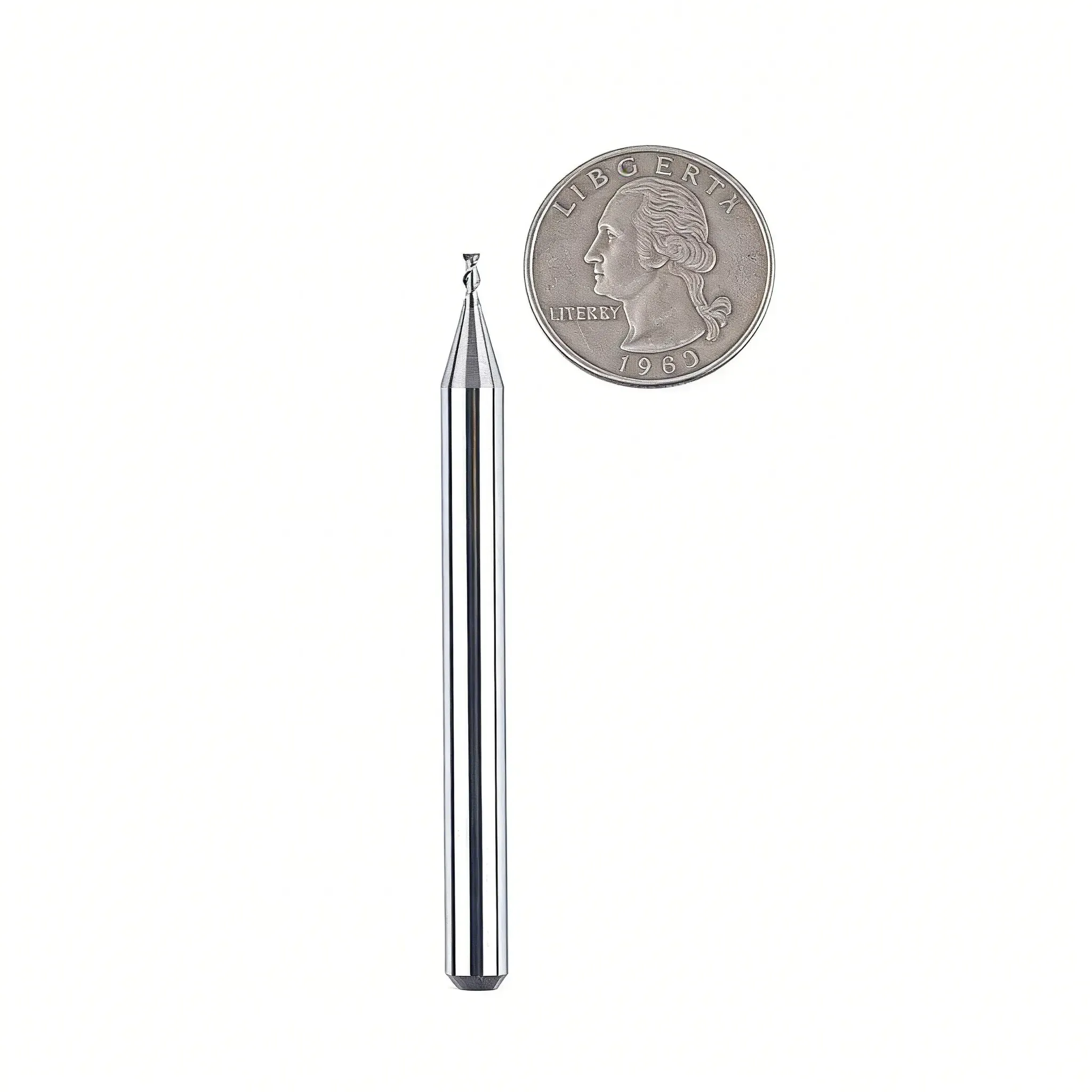

micro-end-mill-size-comparison-with-coin

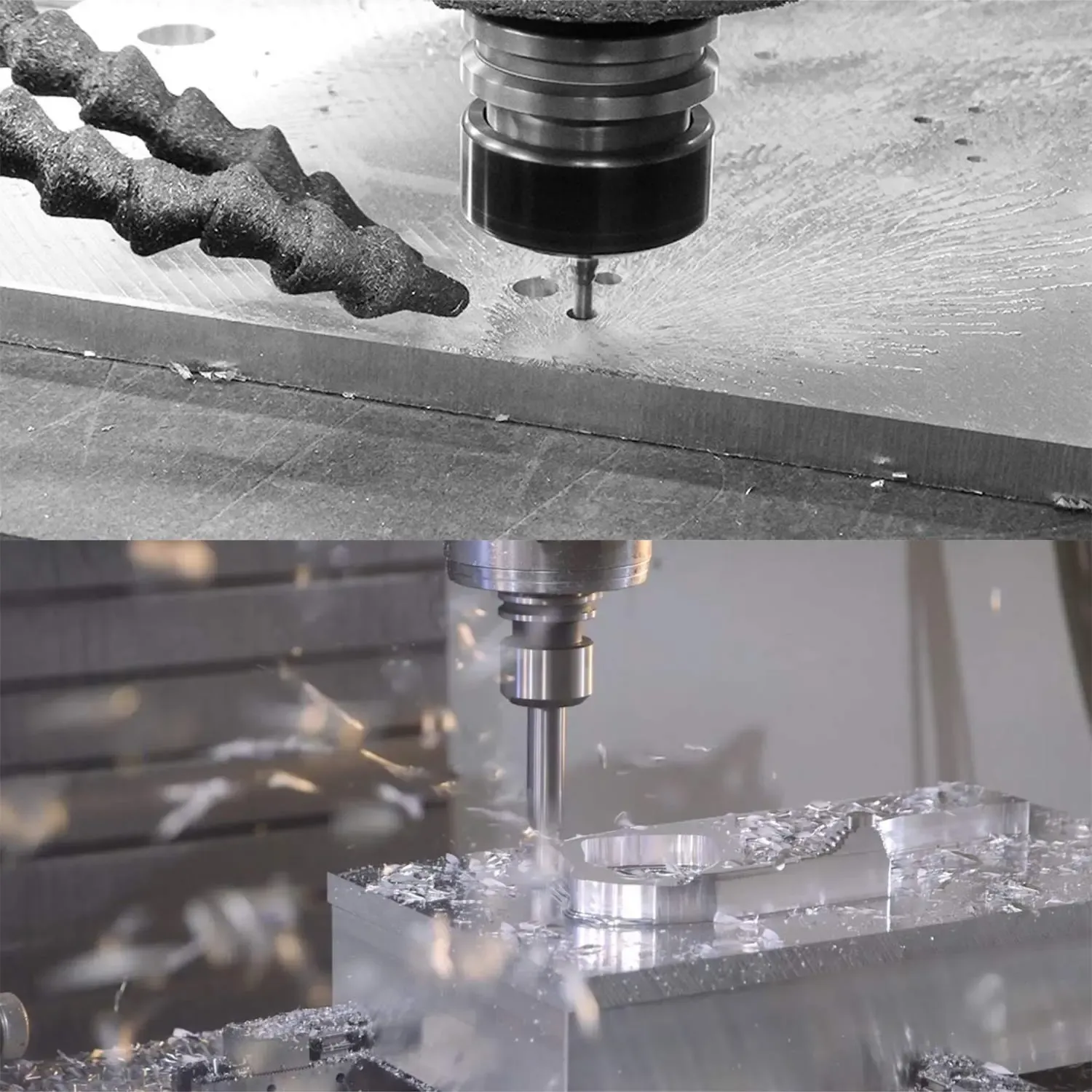

micro-end-mill-for-aluminum-machining-process
2-Flute End Mills for Aluminum NewPopularIn-Stock

High Precision Tungsten Carbide Micro End Mill - 2 Flute for Aluminum & Non-Ferrous Metals

Premium sub-micron carbide micro end mills specifically designed for high-speed machining of aluminum and copper. Features mirror-polished flutes and sharp cutting edges to prevent chip buildup and ensure a burr-free, mirror-like finish.

Contact Us

Product Overview

Our Tungsten Carbide Micro End Mills for Aluminum are engineered for extreme precision in miniature CNC machining. Designed for industries like electronics, medical devices, and aerospace, these tools feature mirror-polished flutes and a razor-sharp 2-flute geometry.
The large chip evacuation space is specifically optimized to handle the "sticky" nature of aluminum and non-ferrous alloys, preventing material melting and built-up edge (BUE) even at high RPMs.


Technical Highlights

  • Mirror Polished Flutes: Exceptionally smooth flute surfaces reduce friction, allowing aluminum chips to slide out rapidly without sticking.
  • Ultra-Sharp Cutting Edge: Specifically ground to achieve a burr-free finish and superior surface quality on soft metals like Aluminum (6061/7075), Copper, and Brass.
  • Reinforced 4mm Shank: All diameters feature a standard 4.0mm shank for maximum rigidity, reducing tool deflection and preventing breakage in micro-machining.
  • 0.01mm Increments: Available in a full range from φ0.20 to φ0.96 to meet the most demanding tolerance requirements.


Technical Specifications

Attribute
Details
Substrate
Sub-Micron Grade Tungsten Carbide
Flutes
2 Flutes
Coating
Bright / Polished (Uncoated) or DLC Coating (Optional)
Helix Angle
35° / 45°
Shank Diameter
4.0 mm (h6 Precision)
Total Length
50 mm
Applicable Materials
Aluminum Alloy, Copper, Brass, Zinc, Plastics


Size Chart (Selection Guide)

We provide a full range in 0.01mm increments. Below are representative sizes:
Cutter Diameter (D1)
Shank Diameter (D)
Length of Cut (L1)
Overall Length (L)
φ0.20 mm
4.0 mm
0.40 mm
50 mm
φ0.30 mm
4.0 mm
0.60 mm
50 mm
φ0.40 mm
4.0 mm
0.80 mm
50 mm
φ0.50 mm
4.0 mm
1.00 mm
50 mm
φ0.60 mm
4.0 mm
1.20 mm
50 mm
φ0.70 mm
4.0 mm
1.40 mm
50 mm
φ0.80 mm
4.0 mm
1.60 mm
50 mm
φ0.90 mm
4.0 mm
1.80 mm
50 mm
φ0.96 mm
4.0 mm
1.92 mm
50 mm
Note: For the full list of 0.01mm increment sizes or custom flute lengths, please Contact Us.


Application Examples

  • Electronics: Micro-milling of heat sinks, aluminum enclosures, and connectors.
  • Horology: Precision components for watches and jewelry.
  • Automotive: Detailing for high-precision aluminum sensors and parts.
