ISO Metric Thread Mills

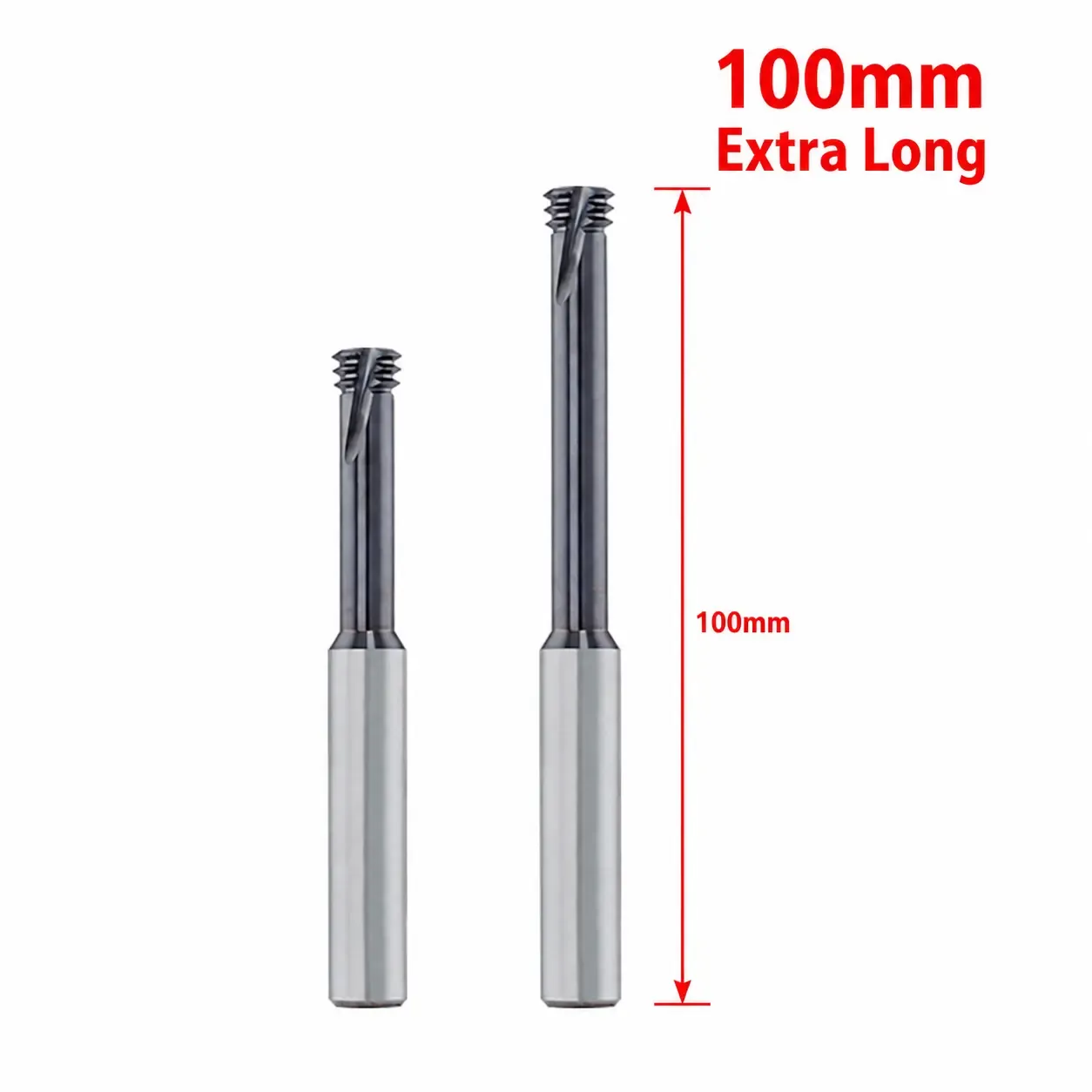

100mm Extra Long 60° 3-Tooth Carbide Thread Mills for Deep Hole Steel Machining
High-efficiency 60° 3-tooth carbide thread mills with 100mm extra-long shanks. German Walter substrate & TiAlCN coated. Perfect for fast deep-hole threading in steel.
100mm Extra Long 60° 3-Tooth Carbide Thread Mills for Steel (TiAlCN Coated)
Maximize your threading efficiency in deep-cavity applications with our Extra Long 3-Tooth Thread Mills. Combining the reach of a 100mm shank with the speed of a 3-tooth design, these tools are engineered to cut threads 3x faster than single-point mills while maintaining the rigidity needed for deep-hole machining in steel and stainless steel.
Product Function
Specifically designed for high-speed internal metric threading in deep recesses. By utilizing a 3-profile cutting head, these tools:
- Reduce Cycle Time: Complete thread profiles significantly faster than single-point tools.
- Deep Hole Access: The 100mm (100L) overall length allows threading in deep molds and complex parts where standard tools cannot reach.
- High Precision: Helical interpolation ensures zero taper and perfect thread fit even at extended lengths.
Product Features
- 3-Tooth High-Speed Design: Features three cutting teeth in a row, allowing for higher feed rates and significantly reduced machining time per hole.
- German Walter Substrate: Manufactured using ultra-fine grain tungsten carbide from Walter (Germany) for maximum tool life and structural stability.
- Advanced TiAlCN Coating: Specialized coating provides superior heat resistance and a low friction coefficient, ideal for:
- Carbon Steel & Alloy Steel
- Stainless Steel & Mold Steel
- Cast Iron & Hardened Materials

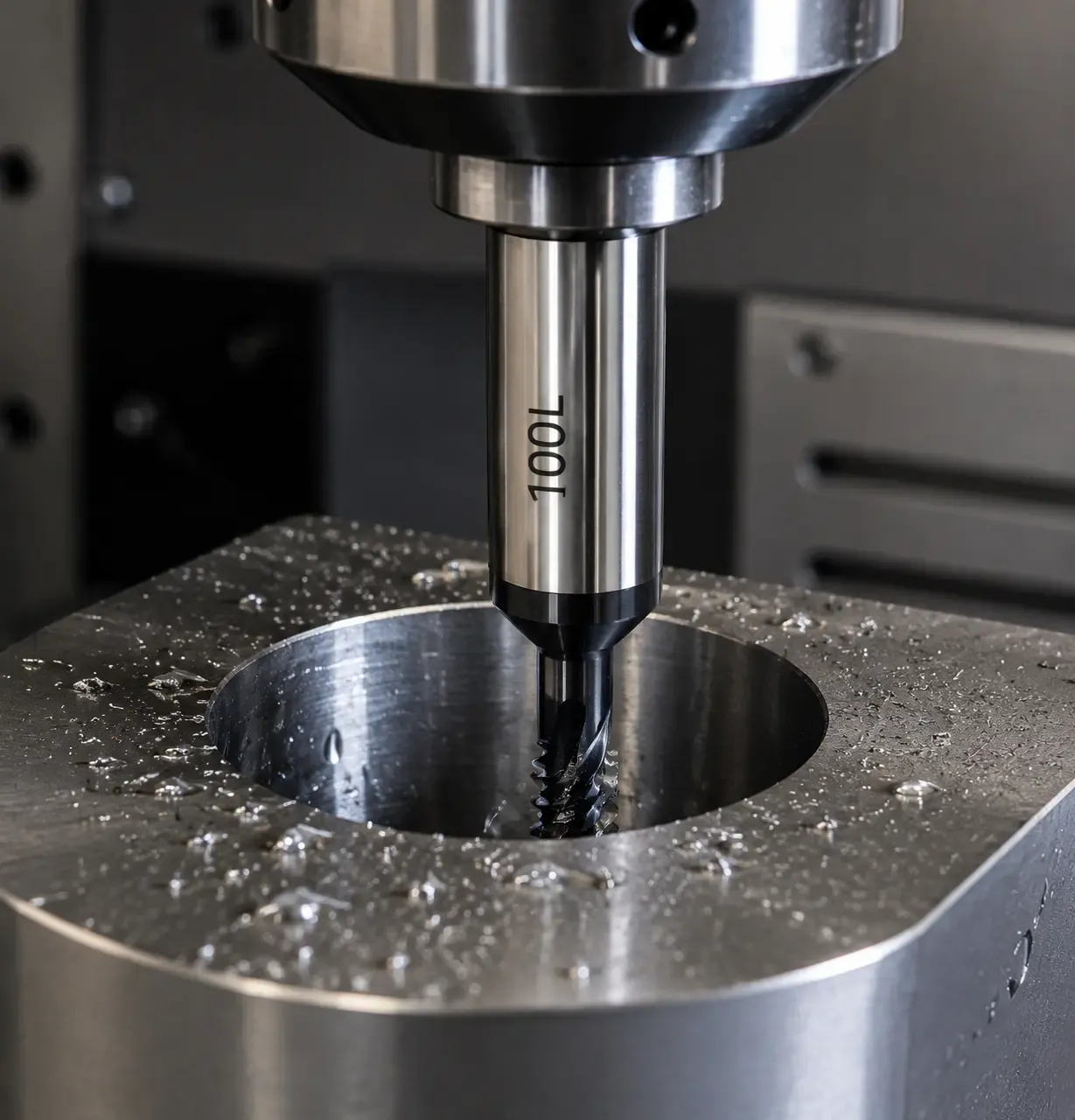

- 100L Extra-Long Shank: Optimized for deep-cavity work, reducing the need for tool extensions or custom long-reach tooling.
Specifications (100L Extra Long Series)
Model (ThreadPitchD1L1FlutesShankOAL) | Shank Dia. (D) | Reach (L1) | Teeth | OAL |
|---|---|---|---|---|
M1.60.35D1.2L6.43FD4100L | D4 | 6.4mm | 3 | 100mm |
M2.00.4D1.54L83FD4100L | D4 | 8.0mm | 3 | 100mm |
M3.00.5D2.4L123FD4100L | D4 | 12.0mm | 3 | 100mm |
M6.01.0D4.8L243FD6100L | D6 | 24.0mm | 3 | 100mm |
M8.01.25D6L323FD6100L | D6 | 32.0mm | 3 | 100mm |
M10.01.5D8L383FD8100L | D8 | 38.0mm | 3 | 100mm |
M12.01.75D10L484FD10100L | D10 | 48.0mm | 4 | 100mm |
M14.02.0D10L504FD10100L | D10 | 50.0mm | 4 | 100mm |
(Full range of models available with 100mm total length for deep-hole solutions) |
Recommended Cutting Parameters (RPM/Feed)
Attention: When using 100L extra-long tools, minimize runout and adjust parameters for stability.
Workpiece Material | Cutting Speed (Vc: m/min) | Feed per Tooth (fz: mm/t) |
|---|---|---|
Carbon Steel (Soft) | 110 - 150 | 0.02 - 0.05 |
Alloy Steel / Mold Steel | 70 - 110 | 0.015 - 0.04 |
Stainless Steel (304/316) | 60 - 90 | 0.01 - 0.03 |
Cast Iron | 90 - 130 | 0.025 - 0.06 |
Technical Tip: For 100L shanks, we recommend a 2-3 pass strategy for the best thread finish and to avoid tool deflection.
Promotion Policy
- Wholesale Discounts: Save 10-20% on bulk orders (50+ pieces).
- OEM Services: Custom lengths, coatings, and laser-marking available.
- Stock Availability: All 100L 3-Tooth models are ready for immediate global dispatch.
- Sample Program: Competitive pricing for first-time industrial trial orders.
Client Benefits
- 300% Efficiency Boost: Move from single-point to 3-tooth milling and cut your threading cycle time by two-thirds.
- Ultimate Deep Hole Solution: No more worrying about shank interference; our 100mm length handles the deepest cavities with ease.
- Superior Surface Finish: German carbide ensures the tool remains sharp longer, providing burr-free threads.
- Process Security: Safer than tapping in deep holes; easier chip evacuation and lower risk of tool breakage.
FAQ
Q: Can one 3-tooth mill cut different pitches?
A: No. 3-tooth mills have a fixed pitch (e.g., M6x1.0). You must match the tool to the specific thread pitch. For pitch versatility, please see our Single Point series.
Q: Is the 100L shank prone to vibration?
A: Due to the high-quality German Walter substrate, our tools are very rigid. However, we recommend using high-precision holders and reducing feed rates by 20% compared to standard length tools if vibration occurs.
Q: Does this work on hardened steel?
A: Yes, the TiAlCN coating allows for effective machining of materials up to HRC 50.
Q: Do you provide G-Code for 3-tooth milling?
A: Yes, our technical team can provide programming support for most CNC controllers (Fanuc, Haas, Siemens).
Need higher speed? Choose 3-Tooth. Need to cut multiple pitches with one tool? Choose Single Point.
